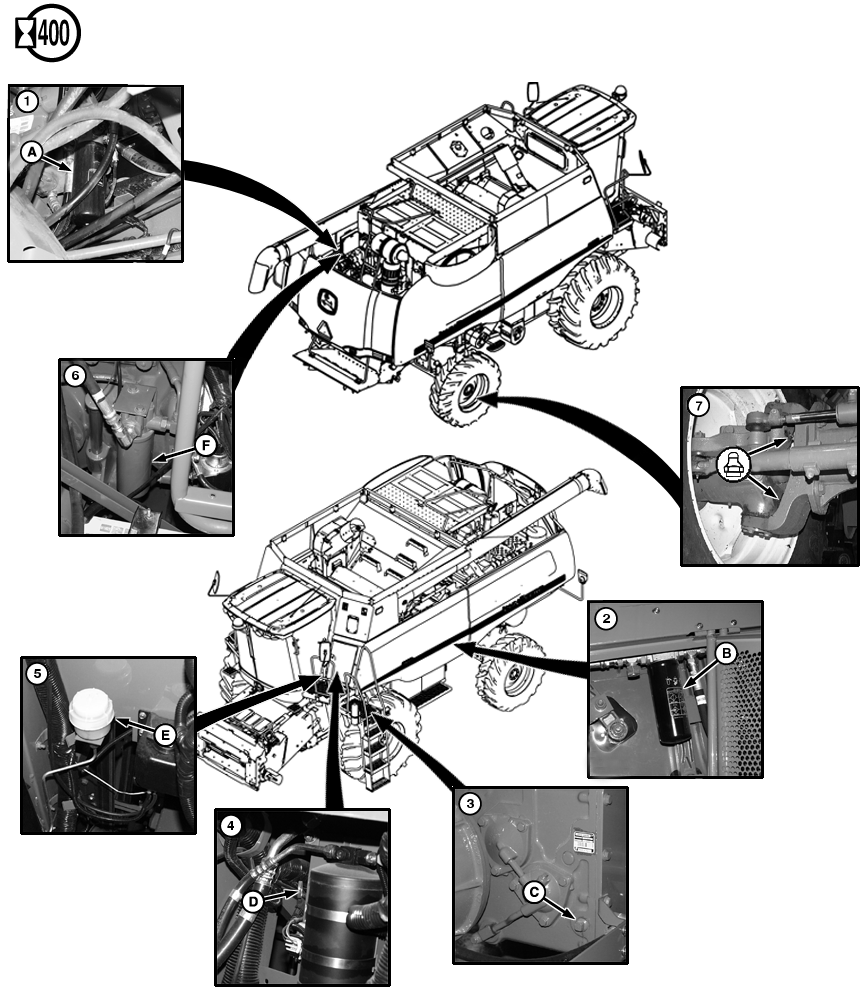

A-Hydrostatic Charge Filter
B-Hydraulic/Hydrostatic Filter

C-Plug
D-Dipstick

E-Brake Fluid Reservoir Cap

F-Engine PTO Gear Case Filter

OUO6075,0000428 -19-26MAY06-1/2

NOTE: It is not necessary to drain system when installing filters.

1. Hydrostatic Charge Filter - Replace hydrostatic charge filter (A). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

2. Hydraulic/Hydrostatic Filter - Replace hydraulic/hydrostatic filter (B). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

3. Transmission - Remove plug (C) and check oil level. Add oil as needed to within 12 mm (1/2 in.) of bottom of hole.

4. Primary Countershaft Gear Case - Check primary countershaft gear case oil level with dipstick (D). Add oil as needed.

5. Brake Fluid - Check brake fluid level. Look through cap (E). Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

6. Engine PTO Gear Case - Replace engine gear case filter (F). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

7. Heavy Duty Axle Spindle Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. In normal conditions grease fitting (both sides) every 50 hours.

OUO6075,0000428 -19-26MAY06-2/2
