Rear Tire Selection, Tire Spacing, and Front to Rear Tire Compatibility Charts

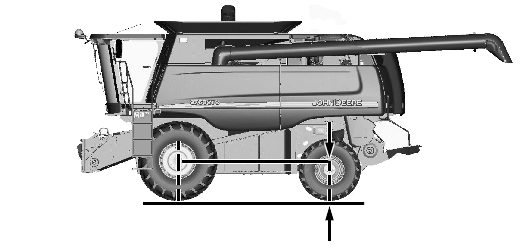

Standard Rear Axle Position 1

High Clearance Rear Axle Position 2

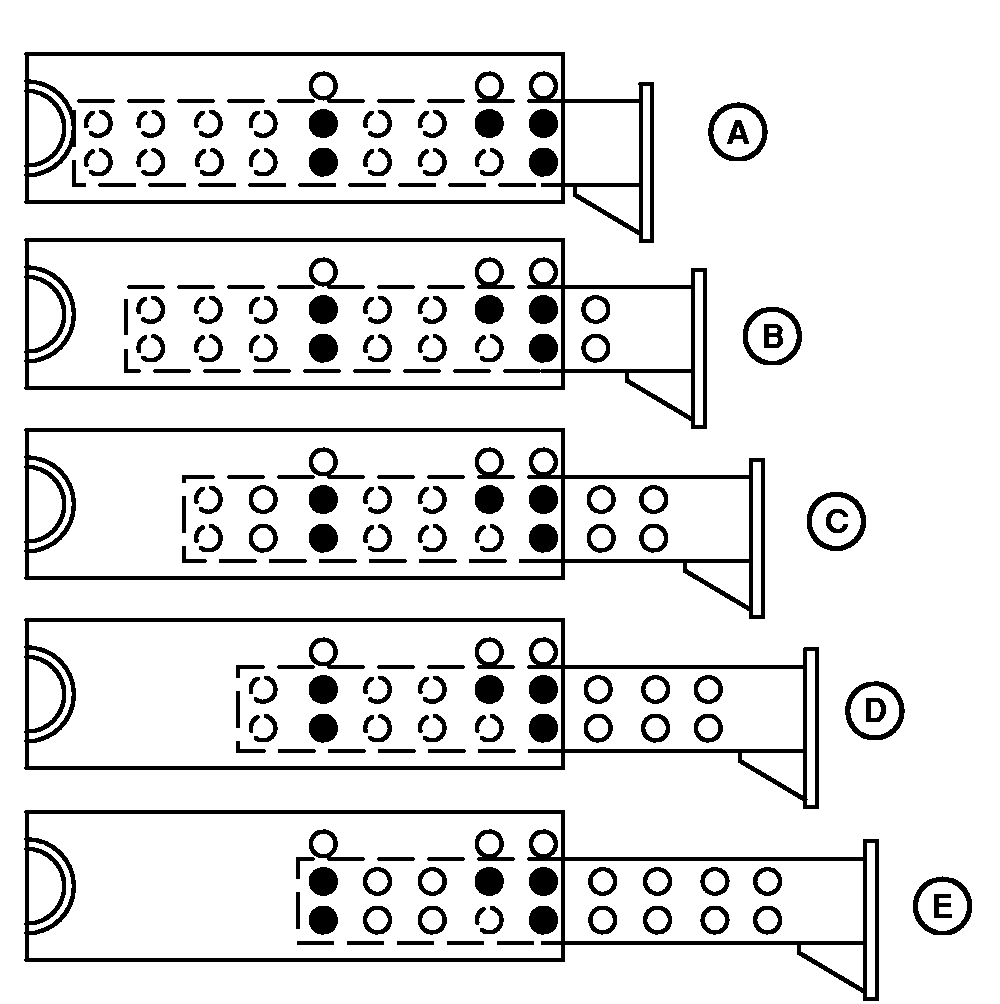

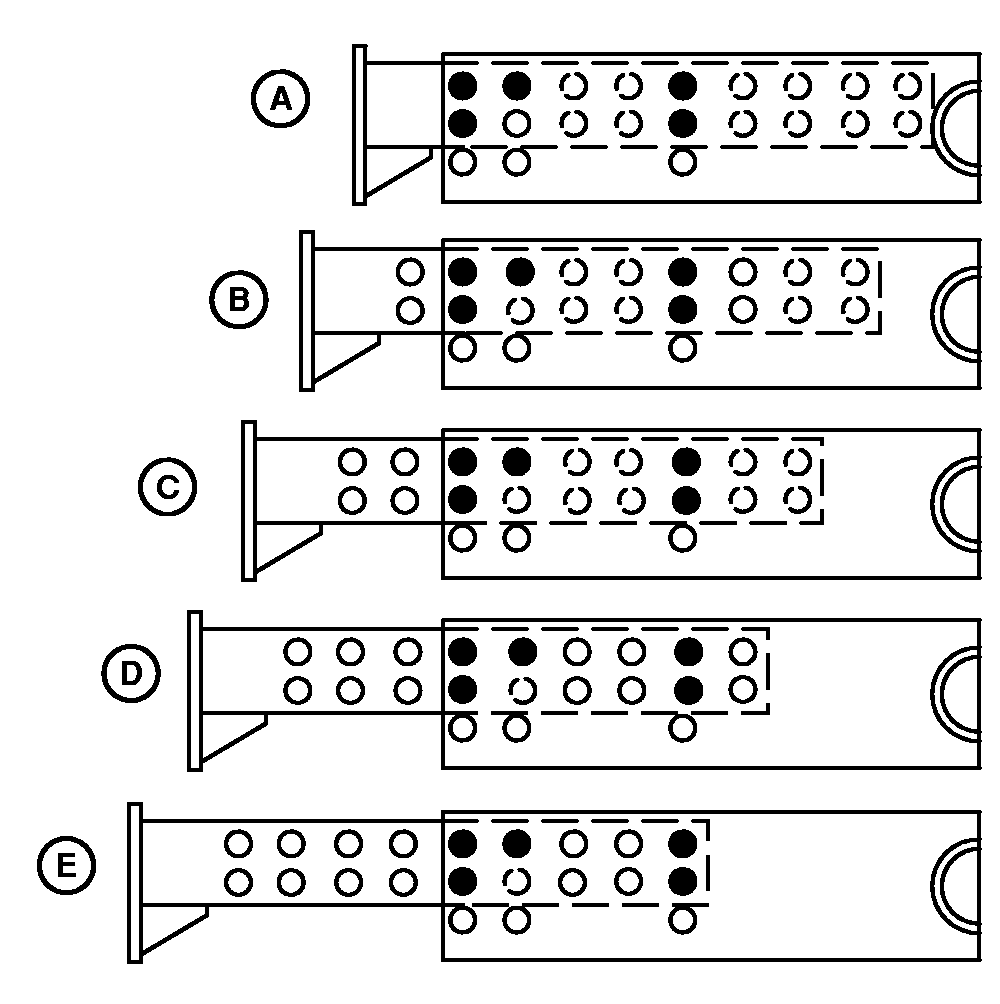

A-Position A B-Position B

C-Position C

D-Position D

E-Position E

NOTE: Arrows show height difference between front and rear of machine. Positive values indicate

rear is higher than front, and negative values indicate front is higher than rear.
