Feeder House Conveyor Speed (Optional High Speed Feeder House Sprocket)-Changing

causym CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

NOTE: 26/38 tooth sprocket is available as a bundle, see your John Deere dealer.

Feeder house conveyor chain can be set to two different speeds by selecting drive sprocket (A) on right-hand side of lower shaft.

Use small sprocket for low speed and large sprocket for high speed.

    Important Notes About 38 Tooth Sprocket:

  • 38 tooth sprocket is not recommended for corn use.
  • 38 tooth sprocket should only be used with variable speed drive (if equipped) set to slowest speed.

    Recommended for conditions when feeding is poor due to following crops and conditions:

  • Crops: Barley, Oats, Rice, Rye and Wheat
  • Conditions: High Volume, Green, Wet, Windrowed and Poor Feeding

As crop conditions change or feeding improves (dryer, more even windrows, lighter straw), it is recommended to use the 26 tooth sprocket. This slows the chain speed and reduces the potential for straw damage or pre-threshing and extends chain life.

H71646

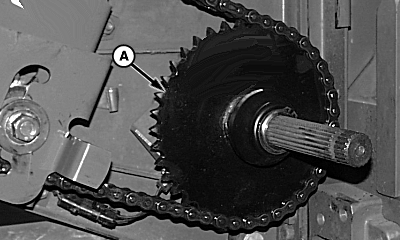

A-Sprocket

OUO6075,000042E -19-01JUN06-1/3

NOTE: See Changing Feeder House Conveyor Speed in this section for moving drive chain to smaller sprocket.

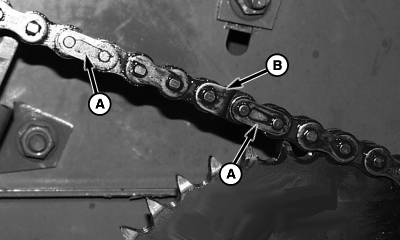

1. Remove and retain master links (A) and spliced chain (B).

2. Move chain to small sprocket and install master link.


A-Master Links
B-Spliced Chain (5 Links)

H71650

OUO6075,000042E -19-01JUN06-2/3

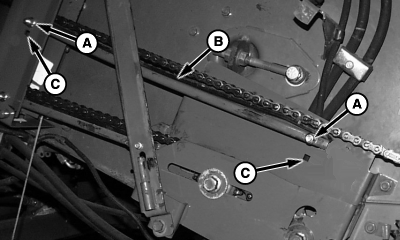

3. Remove hardware (A) from chain guide (B).

4. Install chain guide in lower holes (C) using previously removed hardware and tighten.


A-Hardware
B-Chain Guide
C-Lower Holes

H71649
