Reel Position Resume/Deck Plate Position Resume

NOTE: Machine will retain header settings (fore/aft or hydraulic deck plate) previously used until reset.

Reel Position Resume allows the operator to select the position of the reel relative to the cutterbar and return to that position automatically.

Deck Plate Position Resume allows the operator to select the spacing of the hydraulic adjustable decks plates and return to that position automatically.

Reel Position Resume/Deck Plate Position Resume must be calibrated when the header is used with the combine the first time (see Calibration Procedures section).

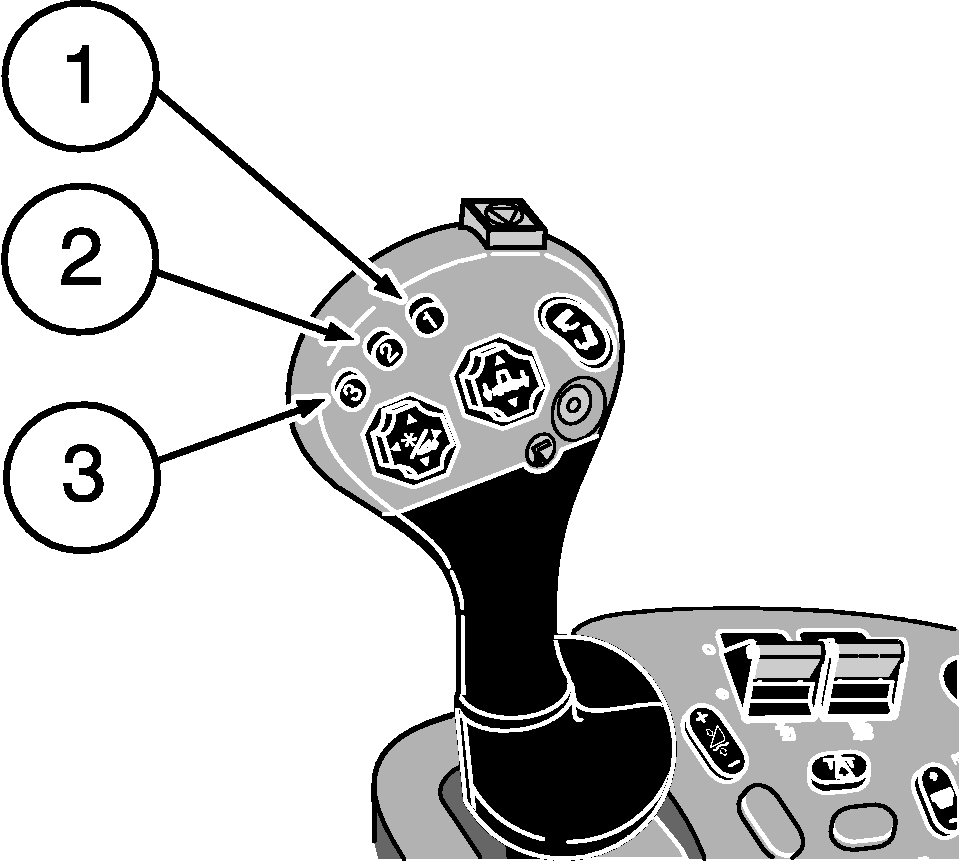

Activation buttons 1, 2 or 3 located on the multifunction control handle are used to select one of three different programmed reel positions or deck plate spacings.

Reel Position Resume/Deck Plate Position Resume will be active when:

• Properly equipped header is connected to combine
• Engine is running
• Road transport disconnect switch is in field position
• Header with reel position sensors connected and calibrated
• Header with hydraulic adjustable deck plates is calibrated
• Reel Position Resume/Deck Plate Position Resume is enabled
• Header is engaged

OUO6075,0000A83 -19-29JAN07-1/2

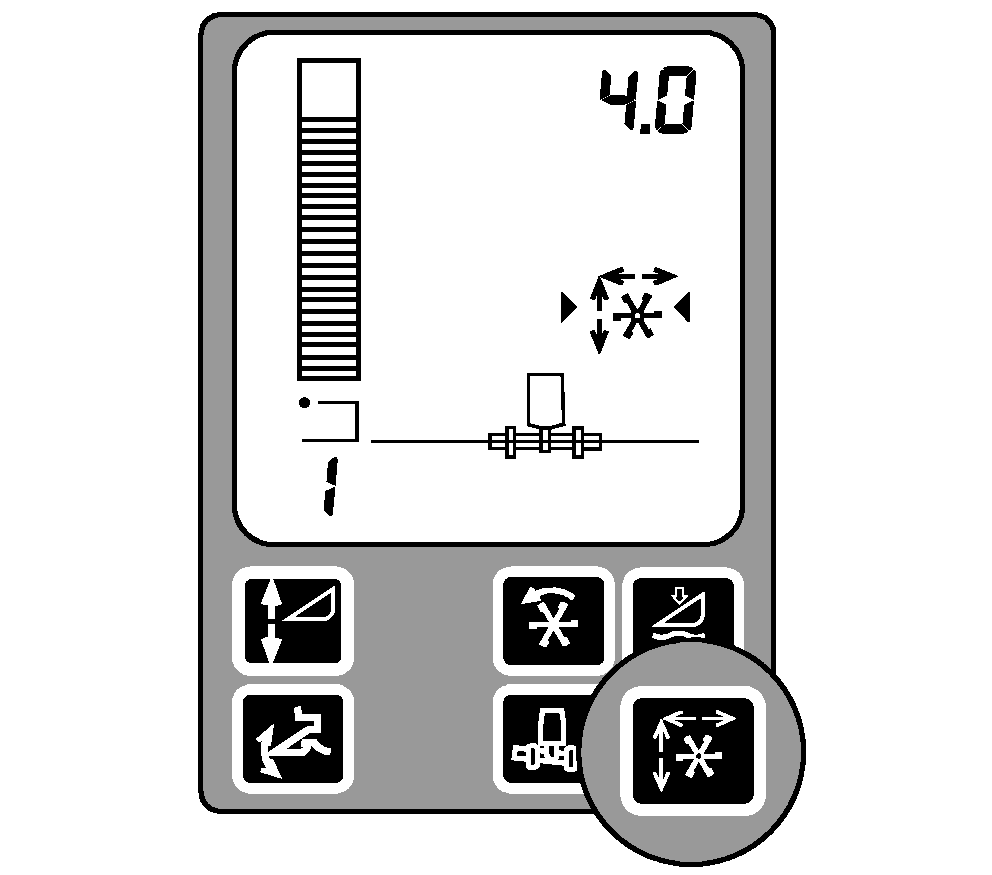

The system is enabled by pressing button (A) on the display. Symbol (B) will appear on the display. Arrow symbols indicate the system is active.

Reel Position Resume: Use reel lift and reel fore/aft switch (C) to obtain desired fore-and-aft position and to obtain reel height position.

Deck Plate Position Resume: Use reel fore/aft switch (C) to obtain desired hydraulic deck plate spacing.

NOTE: When harvesting conditions are such that more than one reel position is required, e.g., one position for down crop and one position for standing crop, the operator can store a reel position for each resume button and move from one reel position to another by selecting one of the resume buttons.

Press and hold activation buttons 1, 2 or 3 on multifunction control handle for three seconds to memorize reel position or deck plate spacing.

Display number (D) in lower left corner of display indicates which activation button was selected.

Reel Position Resume: Manually moving reel lift and reel fore/aft switch (C) on multifunction control handle will deactivate reel position.

Deck Plate Position Resume: Manually moving reel fore/aft switch (C) on multifunction control handle will deactivate deck plate spacing.

Press any of the three activation buttons to reactivate the system. Reel position or deck plate spacing will move to the selected position.

The system can be disabled by pressing button (A) on the display.

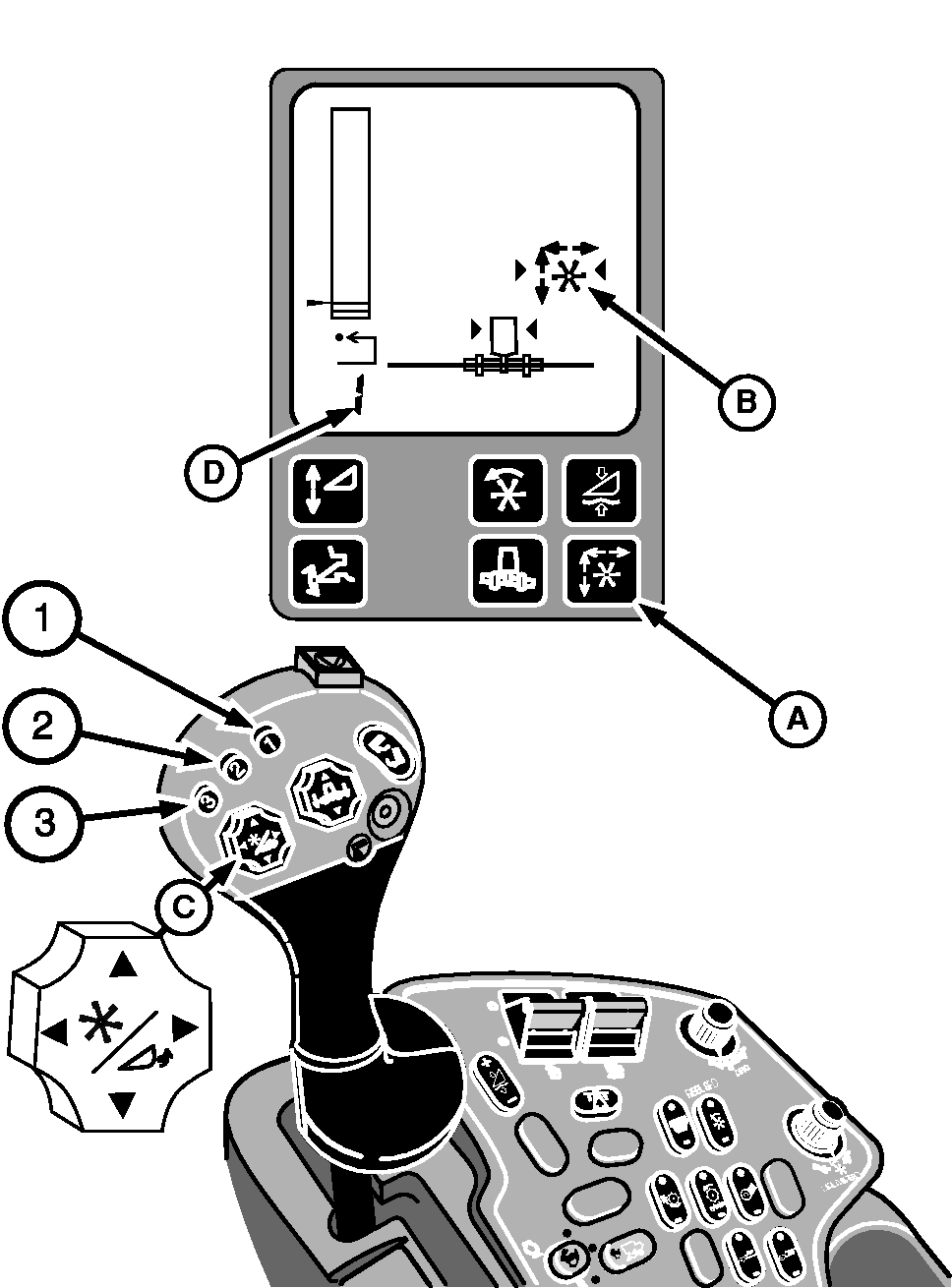

A-Reel Position Resume/Deck Plate Position Resume Button
B-Reel Position Resume Symbol
C-Reel Lift and Reel Fore/Aft Switch
D-Display Number

OUO6075,0000A83 -19-29JAN07-2/2
