Clean Grain Elevator Top Access Doors for Drives

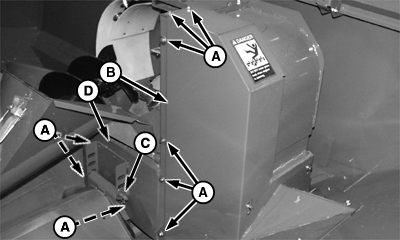

Remove cap screws (A) from door (B).

Remove cross auger pin (C) and door (D).

A-Cap Screws
B-Door
C-Cross Auger Pin
D-Door

OUO6075,0002968 -19-31MAR03-1/1
