Spreader-Lowering

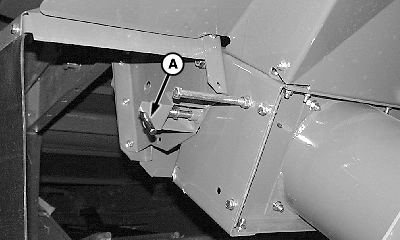

Pull pin (A) out, rotate and place on bracket to unlock spreader from raised position.


A-Pin

H80247

OUO6075,0003377 -19-09FEB04-1/4

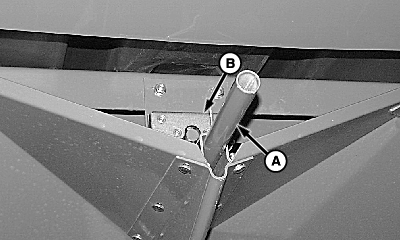

Hold onto spreader handle (A), release latch (B) and lower spreader.


A-Spreader Handle
B-Latch

H80248

OUO6075,0003377 -19-09FEB04-2/4

Remove quick-lock pin (A) and pin (C).

Pull tube (B) up into guide and retain with pin and quick-lock pin.


A-Quick-Lock Pin
B-Tube
C-Pin

H80244

OUO6075,0003377 -19-09FEB04-3/4

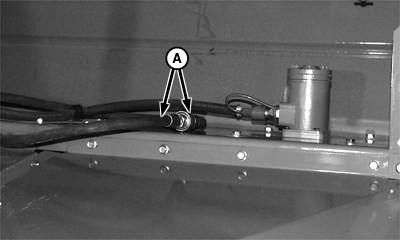

Remove dust caps; disconnect hydraulic hoses (A) and attach to quick couplers.


A-Hydraulic Hoses

H62215

OUO6075,0003377 -19-09FEB04-4/4
