Spreader Blade-Replacing

IMPORTANT: When replacing worn or damaged spreader blades, make sure to replace blades on opposite sides of the spreader disk at the same time. This is important to maintain spreader disk rotational balance.

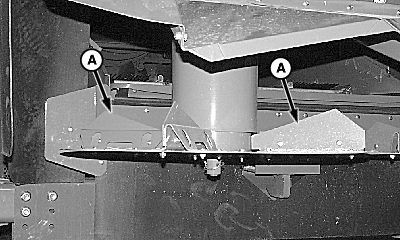

Replace blades (A) to maintain spreader disk rotational balance.

A-Blades

OUO6075,0003378 -19-09FEB04-1/1
