OMH225687: 9560 STS Combine(9560 STS 720101- ), Block File: OUO6075_0003391_19

SETUP - Run Page 1 and 2 screens allows the operator to view where Harvest Monitor information will be displayed.

This procedure allows the operator to select and arrange information that will be displayed on RUN PAGE 1 and 2.

NOTE: SETUP Run Page 1 and 2 are setup using the same procedures.

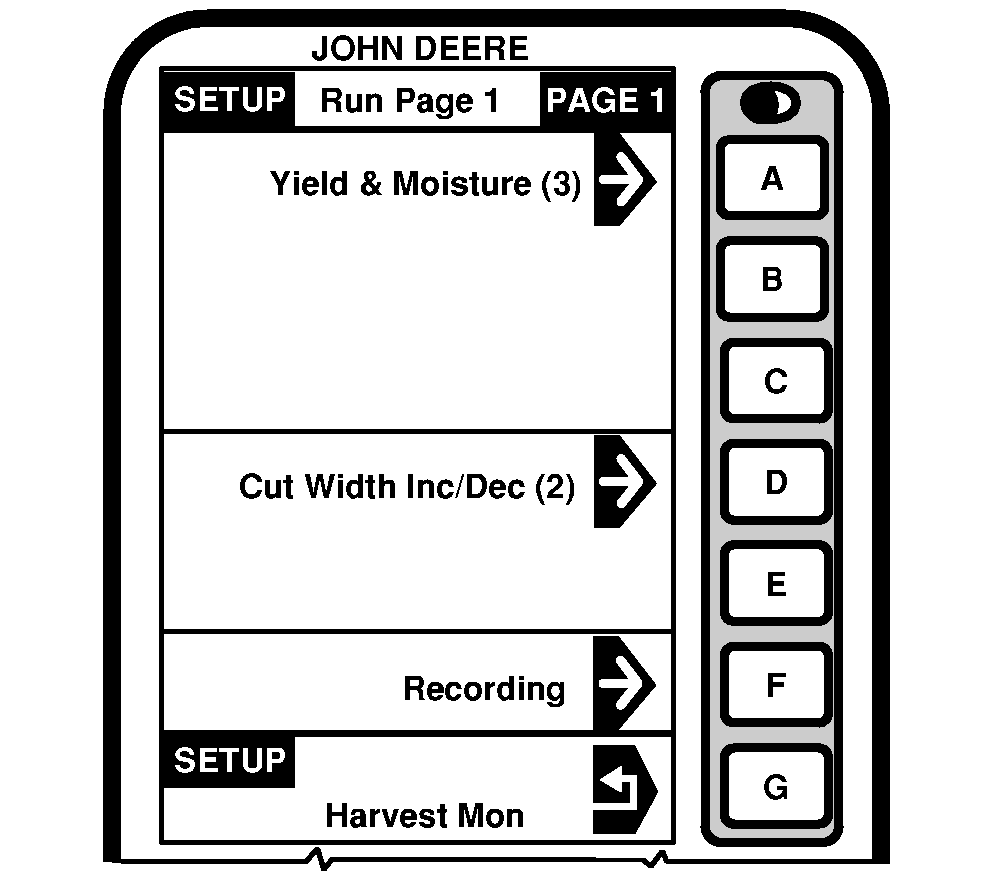

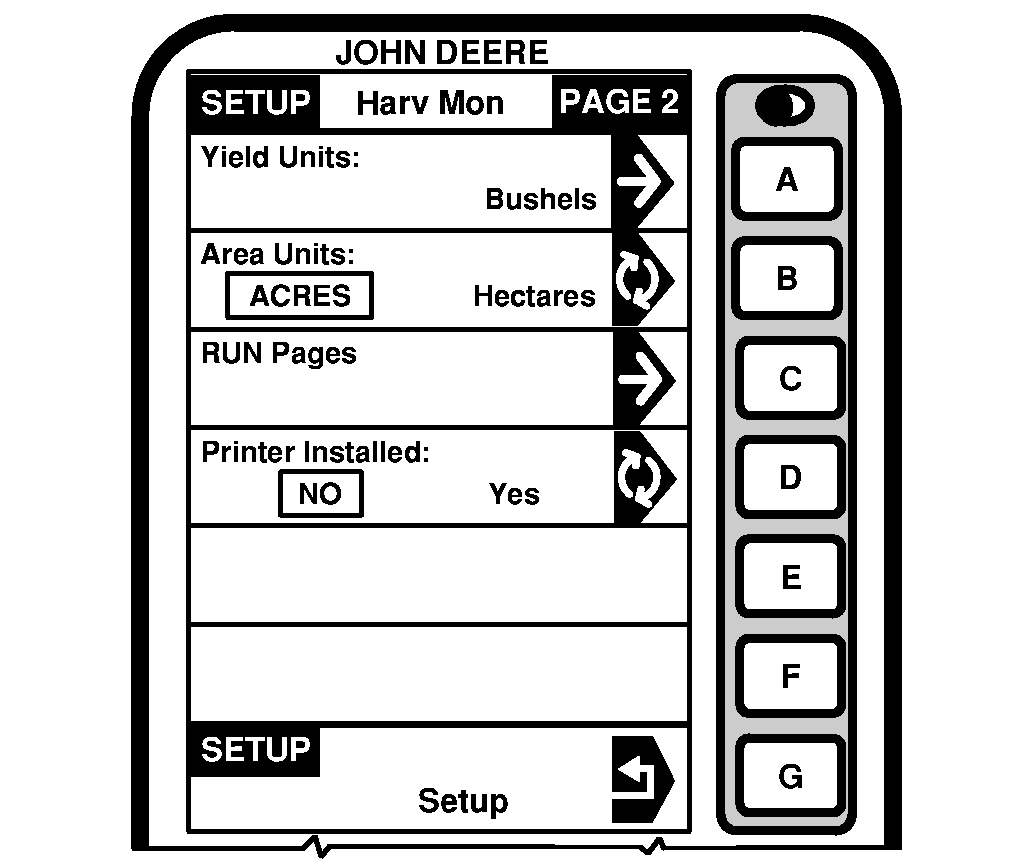

1. Press letter button next to "RUN Pages" on SETUP - Hav Mon - PAGE 2 and SETUP - RUN Page 1 - PAGE 1 will appear.

OUO6075,0003391 -19-17FEB04-1/2

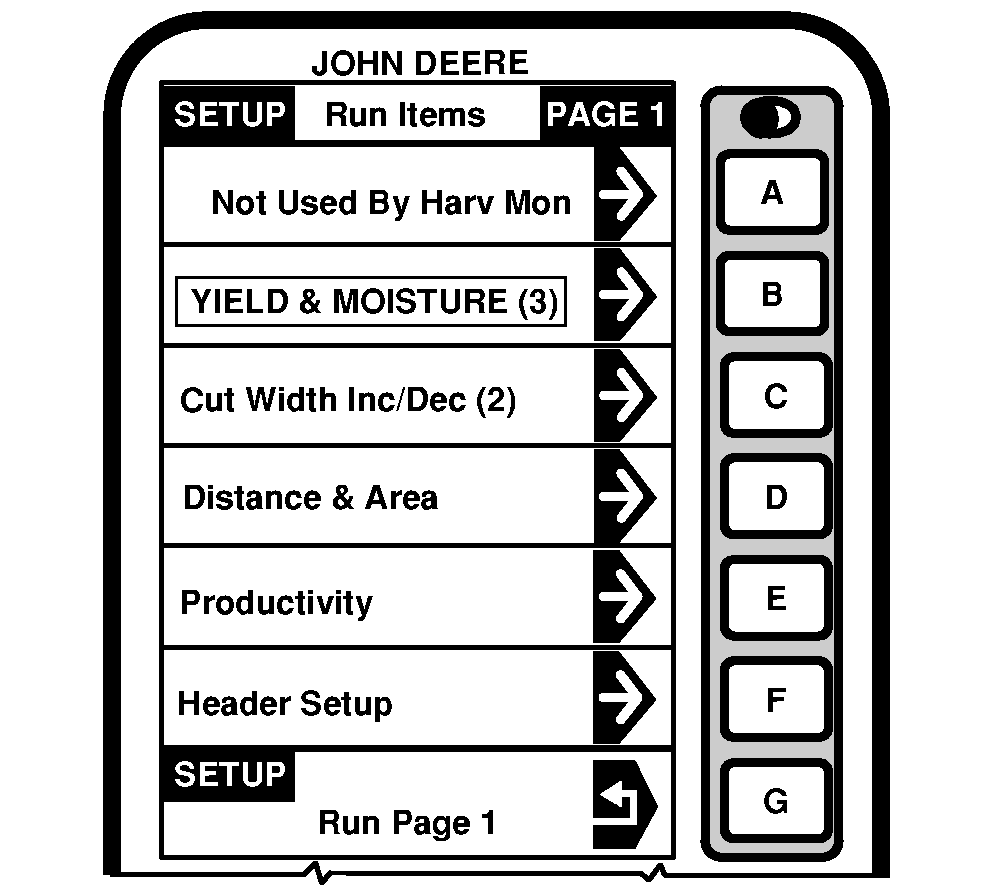

2. Select any cell on SETUP - Run Page 1 - PAGE 1 screen and SETUP - RUN Items - PAGE 1 will appear.

3. Press letter button next to information that you want to appear in a desired cell on RUN - PAGE 1.

4. When selection is made SETUP - Run Page 1 PAGE 1 will appear.

NOTE: To check information arrangement press "RUN" button. RUN - PAGE 1 will appear.

5. Selection will appear on SETUP - RUN Page 1 - PAGE 1.

6. Continue selecting sections on SETUP - Run Page 1 - PAGE 1.

7. Press letter button next to "SETUP" to return to SETUP - Harv Mon - PAGE 2 screen.

OUO6075,0003391 -19-17FEB04-2/2
