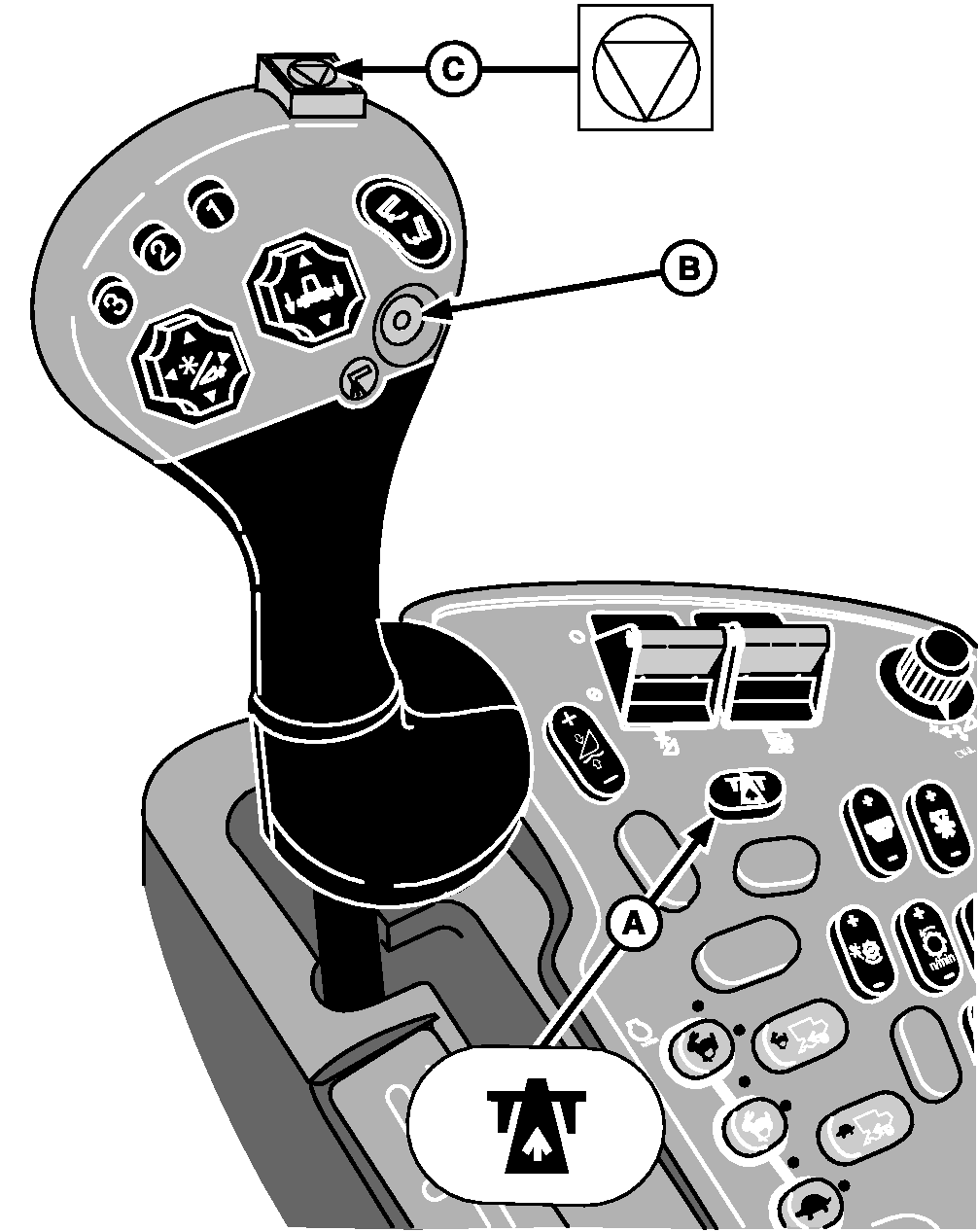

Unloading Auger Drive Switch (Yellow)Road transport disconnect switch (A) must be in field position to engage unloading auger drive. Unloading auger drive is controlled by switch (B). Press switch once to turn ON or press switch again to turn OFF. Indicator light in switch comes ON when system is engaged. Unloading auger drive can also be turned OFF with Quick Stop switch (C) located on top of the multifunction control handle. Unloading auger drive will engage only when the button is held while the auger is in auto swing mode or when auger is manually swung out less than 25%. Operator must be seated before the unloading auger system will engage. If operator leaves the seat after engagement the unloading auger drive will continue to operate for five seconds before the system is disengaged. To re-engage system, sit on the seat and press the unloading auger switch once. If unloading system fails to engage or stops unexpectedly, sit squarely on the seat, and press unloading auger switch once. To re-engage the unloading auger if the header and unloading auger are stopped with Quick Stop switch, press unloading auger switch once. |
|
