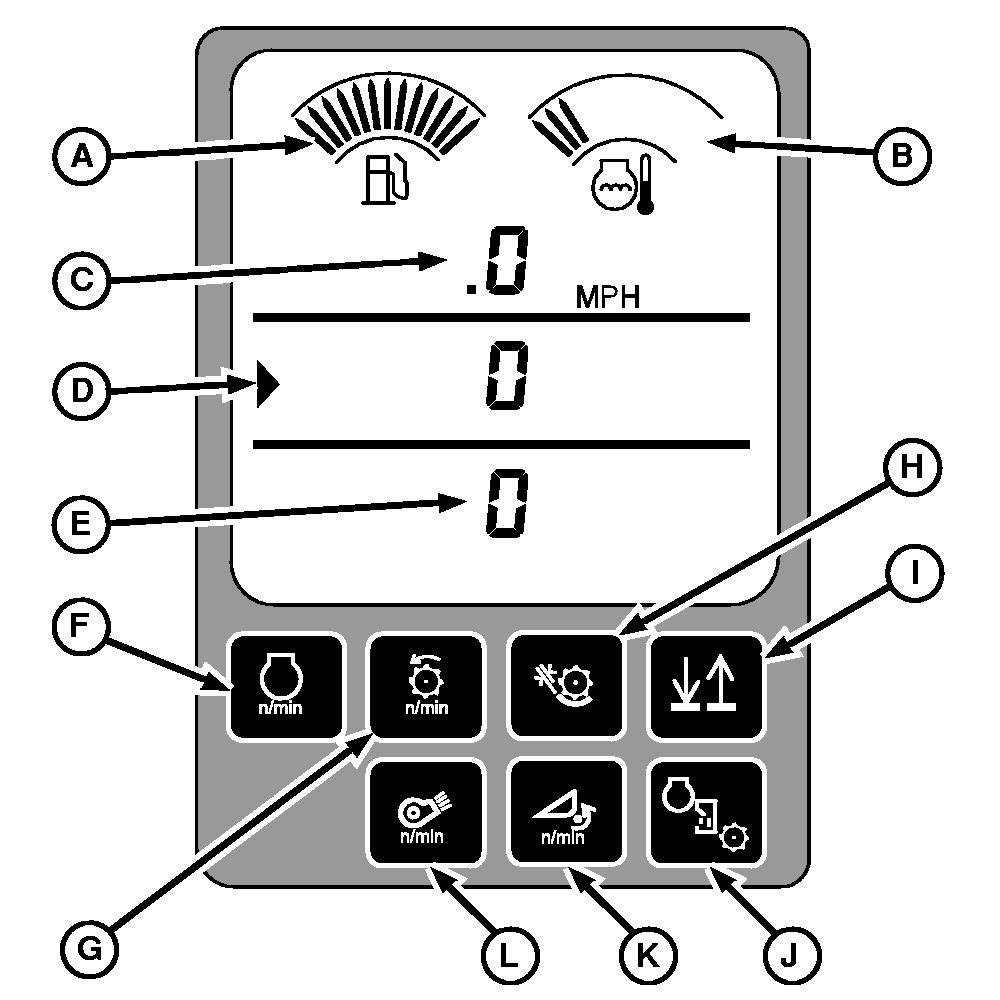

Triple Display Tachometer
A-Fuel Gauge
B-Coolant Temperature Gauge
C-Upper Line Display
D-Middle Line Display
E-Lower Line Display
F-Engine Speed Button
G-Threshing Speed Button
H-Concave Clearance Button
I-Up/Down Arrow Button (Display Line Select)
J-Engine Hours/Separator Hours Button
K-Backshaft Speed Button
L-Fan Speed Button
|
