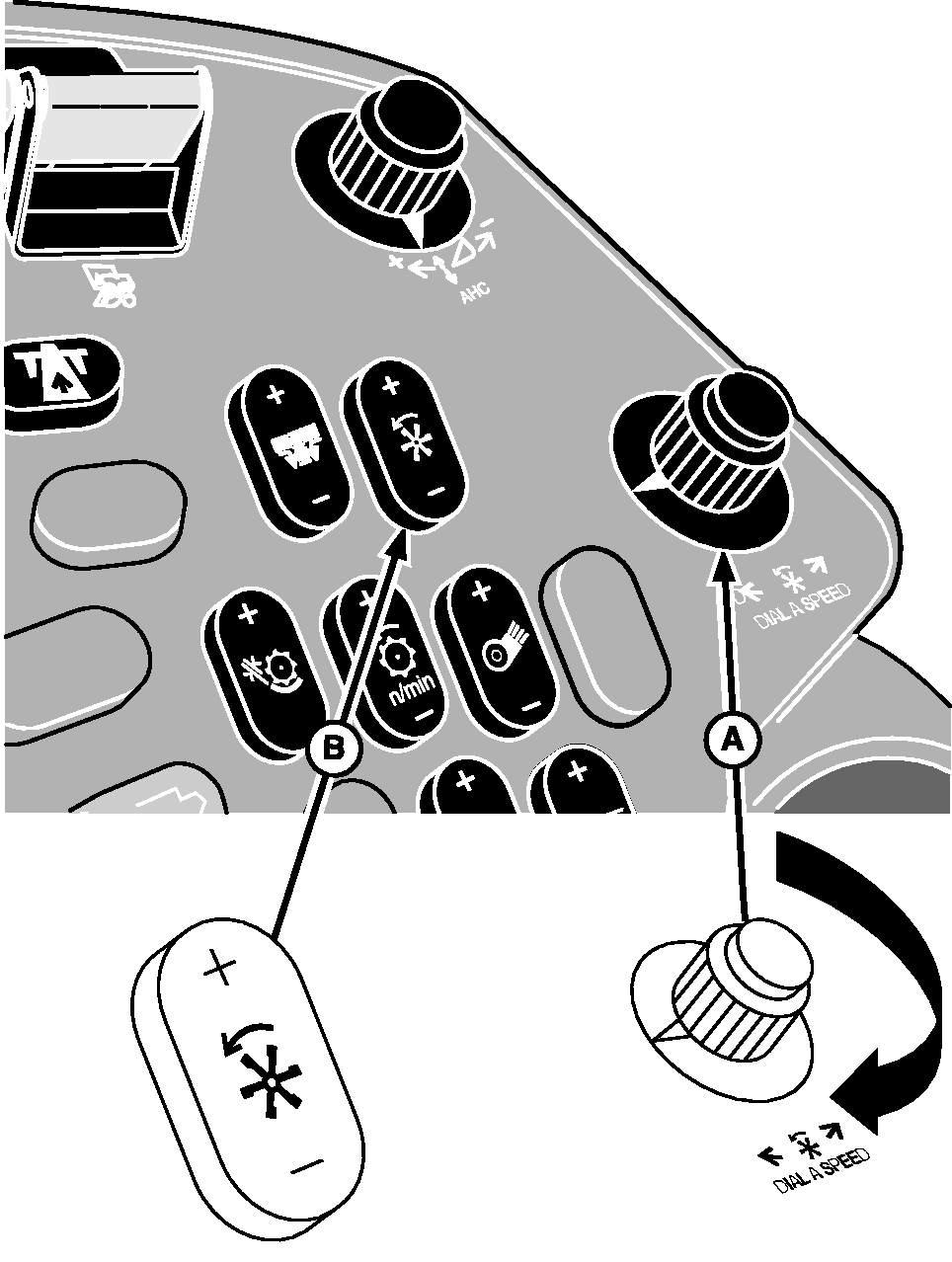

Reel DIAL-A-SPEED™ Dial (Black)Reel DIAL-A-SPEED dial (A) provides the operator with automatic control of the operating speed for the reel or belt pickup. The operating speed will be a ratio of the combine ground speed to the reel or belt speed (see Reel DIAL-A-SPEED System in COMMANDTOUCH Cab Cornerpost section). Manual reel speed switch (B) is also used to control the speed of the reel or belt pickup.
|
|
|
DIAL-A-SPEED is a trademark of Deere & Company | OUO6075,00037A0 -19-23JUN04-1/1 |
