OMH225687: 9560 STS Combine(9560 STS 720101- ), Block File: OUO6075_00037A4_19

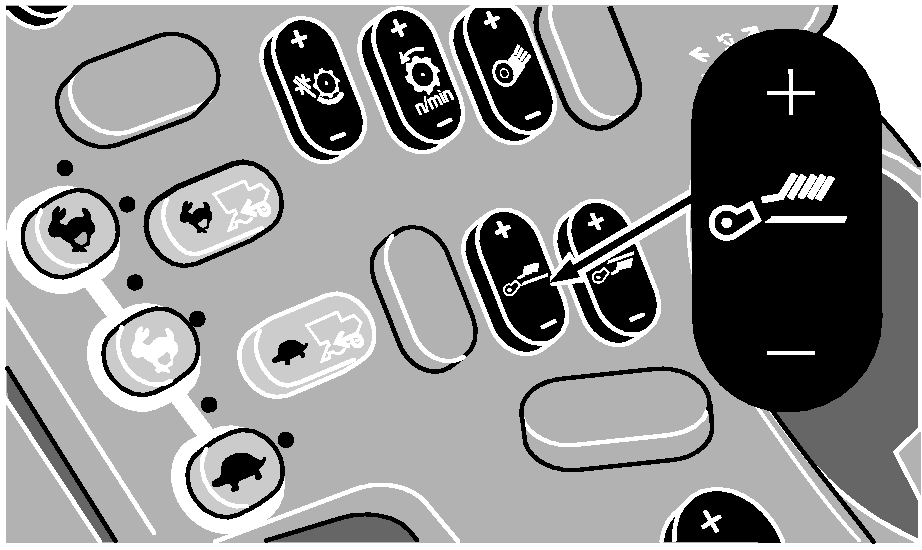

Chaffer Adjust Switch (Black) (Optional)

NOTE: Key switch must be ON to adjust chaffer clearance.

Chaffer adjust switch allows the operator to adjust the chaffer clearance from inside the cab. To increase clearance, press and hold (+) symbol or press and hold (-) symbol to decrease clearance.

OUO6075,00037A4 -19-02JUN04-1/1
