CAUTION: Shut OFF engine, set parking brake and remove key.

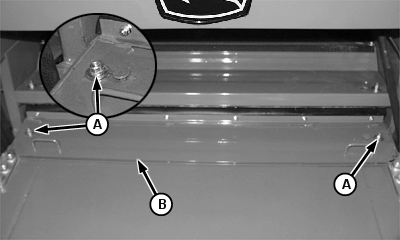

Loosen nuts (A) on each side of the door and push nuts towards center of feeder house.
Pull door (B) forward to remove.

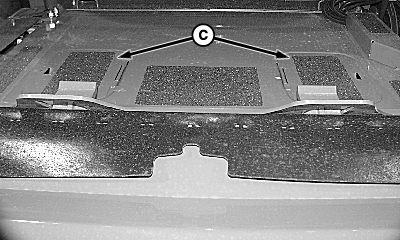

To access inside of feeder house, lift doors (C).
A-Nuts B-Door C-Doors
OUO6075,00037D9 -19-26MAY04-1/1
CAUTION:
Shut OFF engine, set parking brake and remove key.
