Left-Hand Side Shields

CAUTION: Shut OFF engine, set parking brake and remove key.

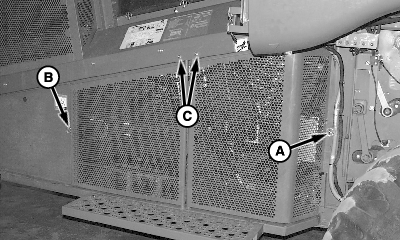

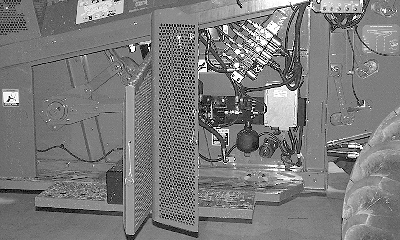

Side Shields- Remove quick-lock pin (A) and swing rear shield out.

Remove quick-lock pin (B) and swing middle shield out.

To remove shields completely, remove cap screws (C) and lift and remove shields.

A-Quick-Lock Pin
B-Quick-Lock Pin
C-Cap Screws

OUO6075,00037E6 -19-26MAY04-1/3

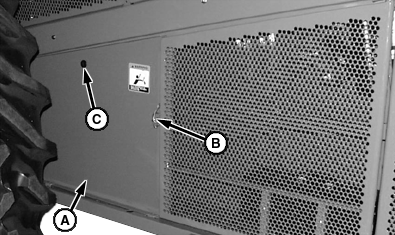

Fan Shield- Remove fan shield (A) by removing quick-lock pin (B) and swing middle shield out.

Using a screwdriver, turn lock (C) counterclockwise and remove fan shield.

A-Fan Shield
B-Quick-Lock Pin
C-Lock

OUO6075,00037E6 -19-26MAY04-2/3

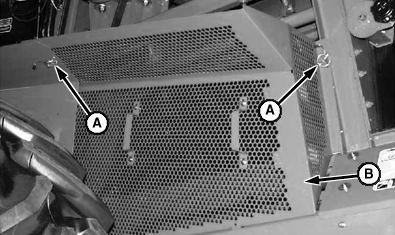

Left-Hand Upper Separator Shield- Remove quick-lock pin (A), lift and remove shield (B).

A-Quick-Lock Pin
B-Shield

OUO6075,00037E6 -19-26MAY04-3/3
