Right-Hand Side Front Shield

CAUTION: Shut OFF engine, set parking brake and remove key.

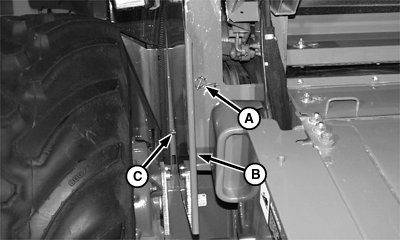

Remove quick-lock pin (A) and pull shield (B) forward.

Remove shield completely by removing cap screw (C) and lift to remove from lower support.

A-Quick-Lock Pin
B-Shield
C-Cap Screw

OUO6075,00037E9 -19-26MAY04-1/1
