Chaffer/Sieve Elements With (Optional) TOUCHSET Automatic Combine Adjustment (ACA)-Removing

causym CAUTION: Shut OFF engine, set parking brake and remove key to help prevent accidental starting and personal injury.

NOTE: It is not necessary to remove straw chopper (if equipped) to remove chaffer. Chopper must be in fully raised position.

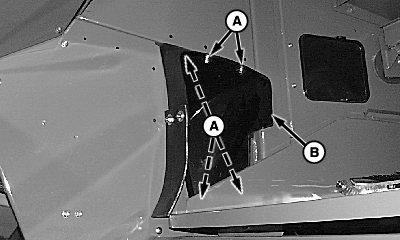

1. If equipped with straw chopper, remove cap screws (A) and air chutes (B) from both sides.

H76071


A-Cap Screws
B-Air Chute

OUO6075,0003807 -19-26MAY04-1/6

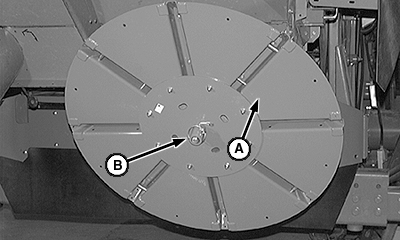

2. Raise spreader (if equipped) and remove quick-lock pins (B).

3. Remove spreader disks (A).


A-Disk
B-Quick-Lock Pin

H54063

OUO6075,0003807 -19-26MAY04-2/6

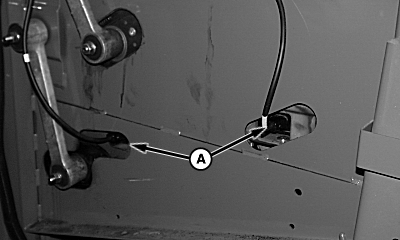

4. Disconnect electrical harness (A).


A-Chaffer/Sieve Harness

H69954

OUO6075,0003807 -19-26MAY04-3/6

5. Remove cap screws (A) and cover to access chaffer motor.


A-Cap Screws

H75897

OUO6075,0003807 -19-26MAY04-4/6

NOTE: Chaffer motor does not have to be removed.

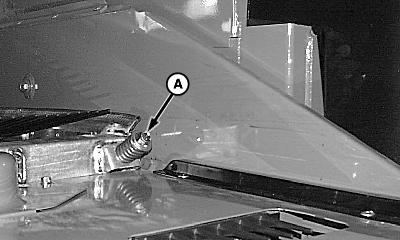

6. Remove cap screws (A) (both sides) and chaffer.


A-Chaffer Bolt

H76684

OUO6075,0003807 -19-26MAY04-5/6

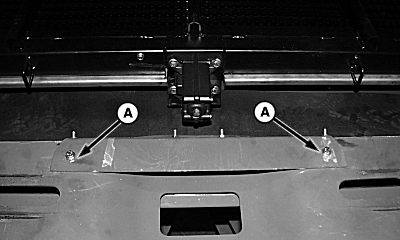

7. Remove cap screws (A) and shield.

8. Sieve removal is similar to chaffer procedure.

9. Install in reverse order.


A-Cap Screws

H69955

OUO6075,0003807 -19-26MAY04-6/6
