Clean Grain Elevator Conveyor Chain-Adjusting

Release latch and open lower door.

Remove nuts from bearing cover.

Loosen nuts (A). Use nuts (B) to adjust chain. To tighten chain, move bearing carrier downward.

Elevator chain is adjusted properly when lower end of chain can be slid side-to-side on the sprocket but cannot be pulled away from the sprocket. When chain loosens up to 6 mm (1/4 in.) away from sprocket, readjust chain. After a period of use, it may be necessary to remove a half link to adjust elevator chain correctly.

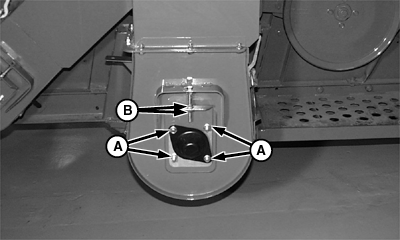

A-Nuts (4 Used)
B-Nuts
