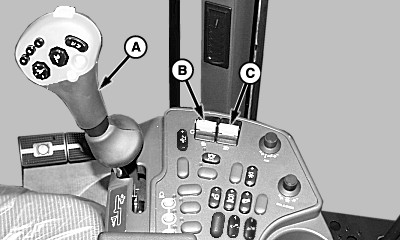

Stopping the Engine1. Lower header or reel completely to the ground. If equipped with optional reel fore/aft, move reel all the way forward.2. Move multifunction control handle (A) to neutral. 3. Disengage header (B) and separator (C). IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts. 4. Before stopping an engine that has been operating at working load, idle engine at least two to three minute to allow turbocharger to cool.
5. Turn key and all other switches OFF. |
|
CAUTION:
Set parking brake and remove key before leaving the combine.
OUO6075,0003847 -19-28MAY04-1/1 |
