Feeder House Slip Clutch

causym CAUTION: Shut OFF engine, set parking brake and remove key.

The slip clutch protects the upper shaft, conveyor, and drive chains.

NOTE: Do not grease slip clutch jaws.

If the slip clutch is disassembled, tighten nut (A) to specification.

Specification

Nut -Torque 350 N·m 258 (lb-ft)

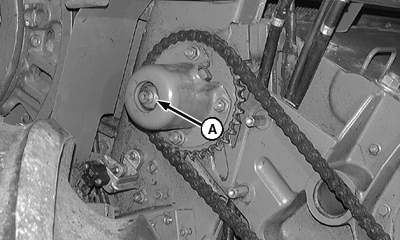

H51808

Shield Removed For Clarity


A-Nut

OUO6075,0003D28 -19-31JAN05-1/1
