Unloading Auger Drive Chain-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

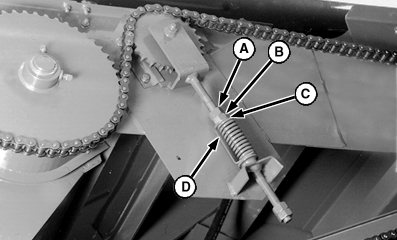

Loosen locking nut (A). Tighten adjusting nut (B) until washer (C) aligns with end of gauge (D). Tighten locking nut.

A-Locking Nut
B-Adjusting Nut
C-Washer
D-End of Gauge

OUO6075,0003D36 -19-31JAN05-1/1
