Unloading Auger Support Stud

NOTE: Periodically check to be sure that auger fully slides into support stud when auger is fully retracted. Readjust as needed.

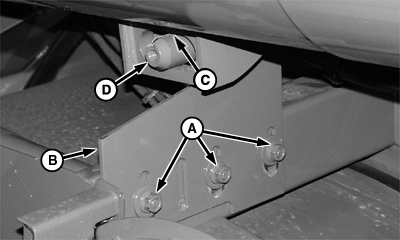

Loosen nuts (A) to adjust position of stud plate (B). Clearance (C) between top of stud (D) and slot, should be 0-3 mm (0-1/8 in.), when auger is empty. Adjust stud plate as needed and tighten nuts.

A-Hardware
B-Plate
C-Clearance
D-Stud
