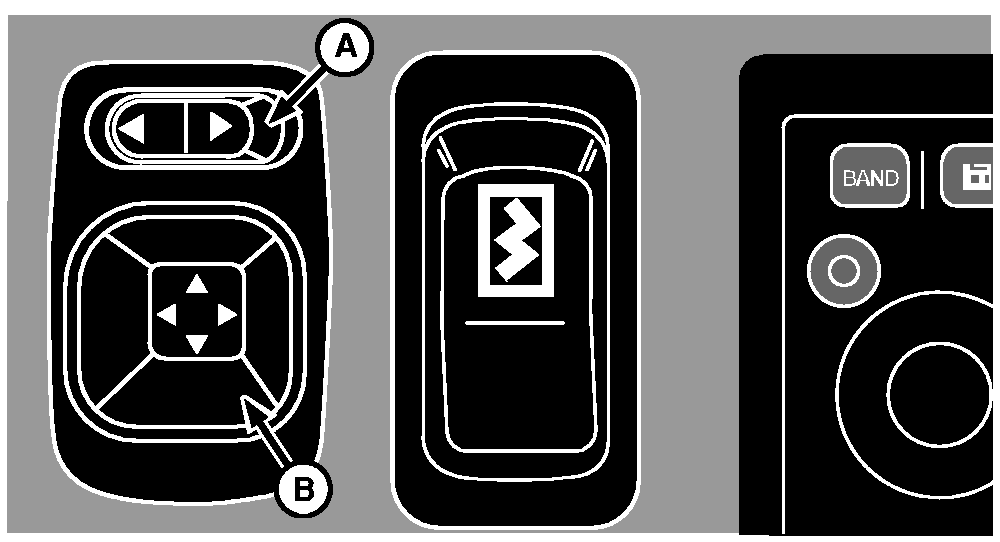

Mirror Control Switch (Optional)NOTE: Key switch must be ON or machine must be running to adjust mirrors. Mirror control switch (A) transfers power to the left-hand or right-hand mirror. Press left side of switch to power the left-hand mirror or press right side of switch to power the right-hand mirror. Mirror adjust switch (B) moves the selected mirror up or down and left or right.
|
|
OUO6075,0003D70 -19-01FEB05-1/1 |
