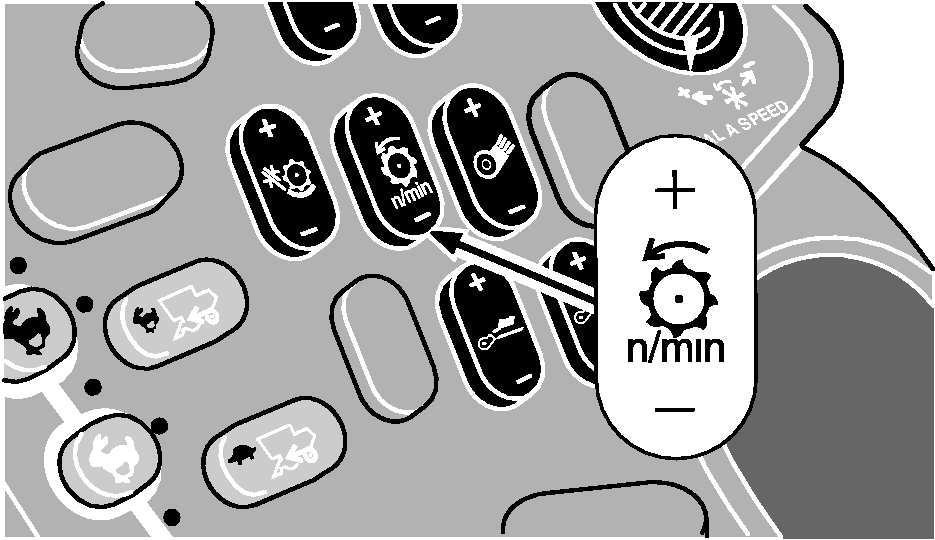

Threshing Speed Switch (Black)

Threshing speed switch controls the separator rpm. Separator must be engaged to adjust speed.

To increase threshing speed, press and hold (+) symbol or press and hold (-) symbol to decrease threshing speed. Threshing rpm will be displayed on cornerpost tachometer.

Threshing speed switch resets the tachometer for the low speed alarm in the overhead warning display panel. Whenever the threshing speed is changed the alarm is also rest. Threshing speed may increase about 30 rpm over four hours as oil temperature increases. Adjust threshing speed as needed.
