Chopper Vanes-Factory Settings

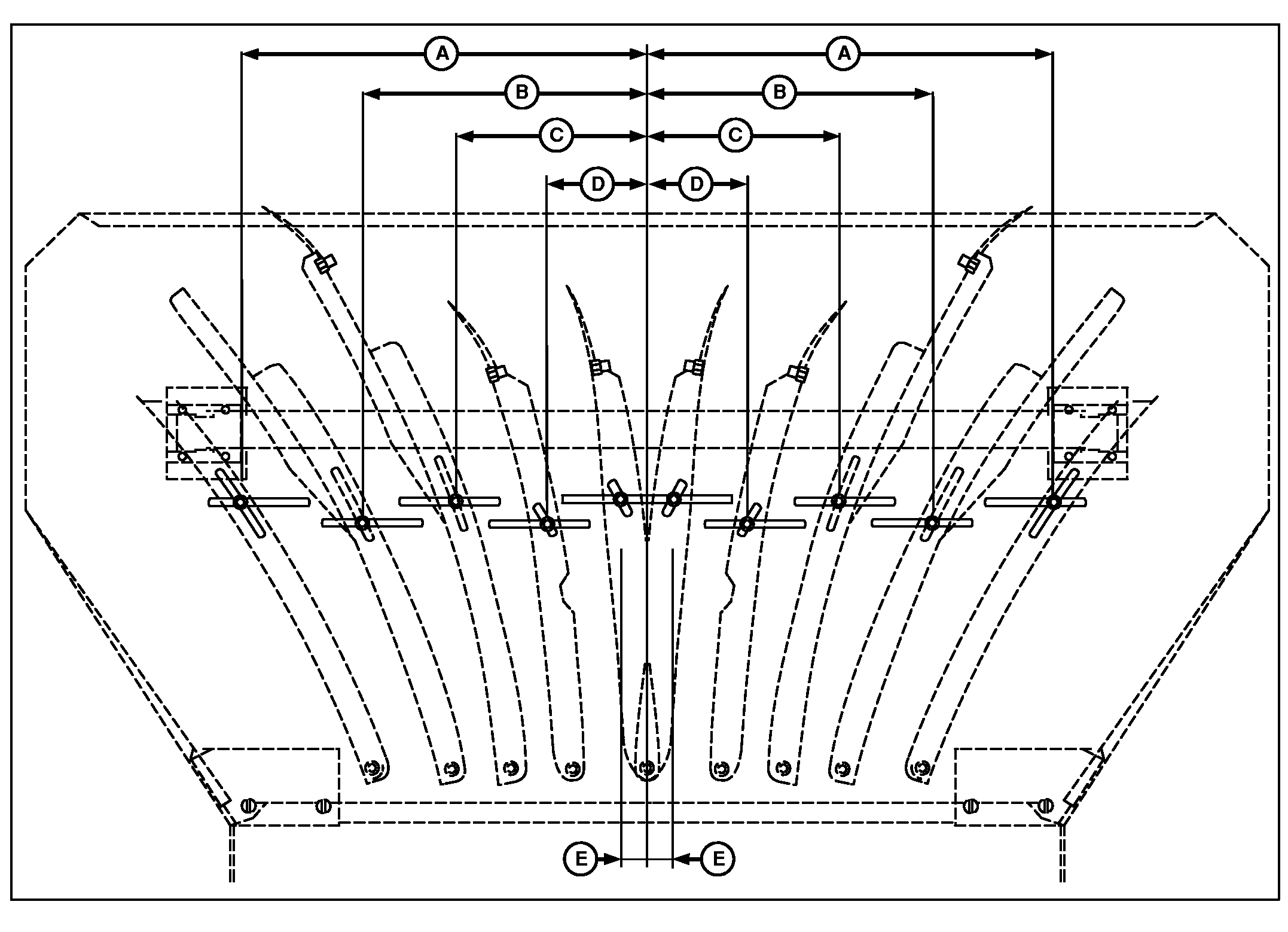

Chopper Settings For 7.6 m (25 Ft.) Platforms
A-485 mm (19.1 in.)
B-333 mm (13.1 in.)
|
C-227 mm (8.9 in.)
|
D-122 mm (4.8 in.)
|
E-35 mm (1.4 in.)
|
|
|
OUO6075,0003DF7 -19-27APR05-1/2
|

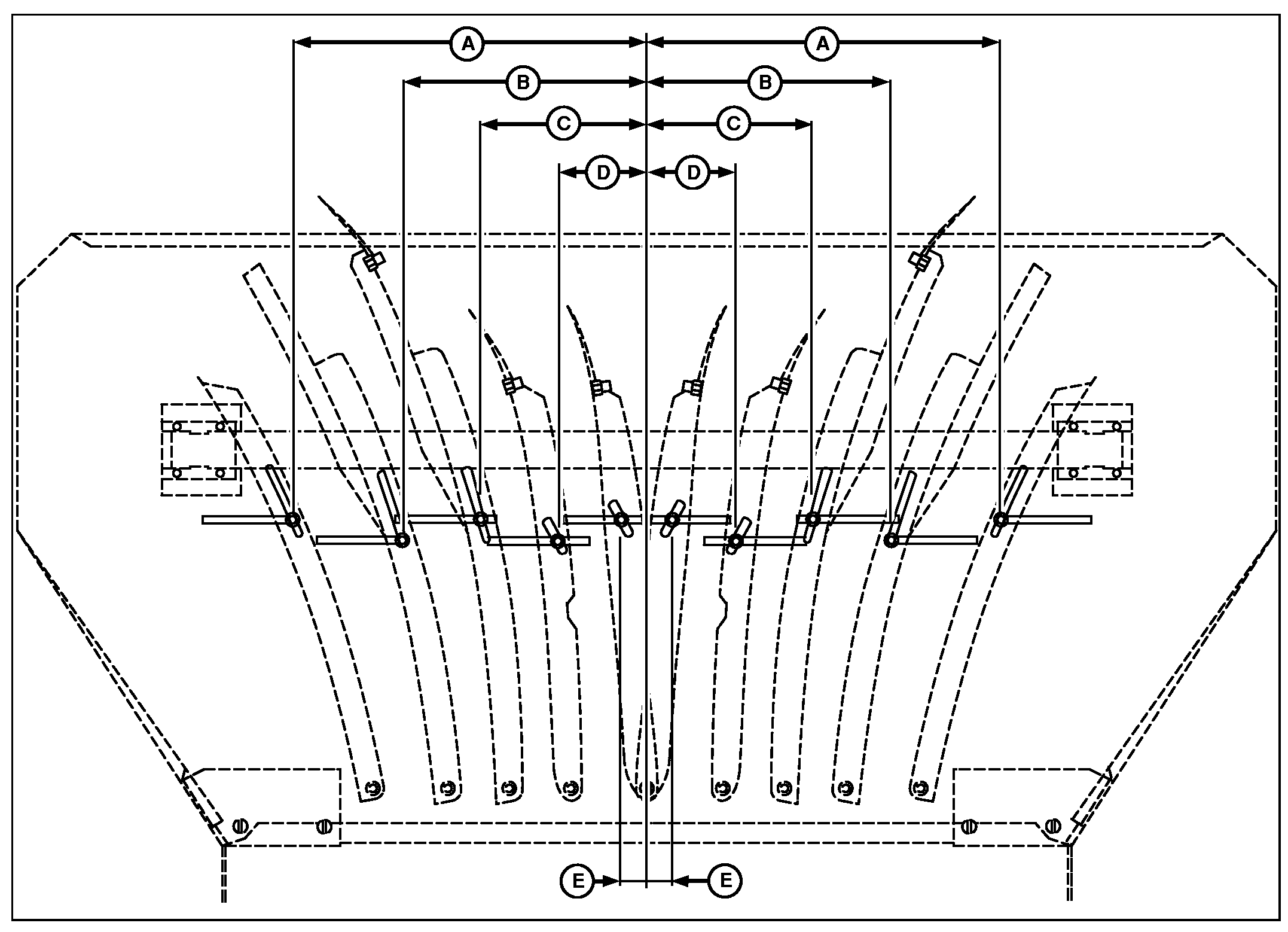

Chopper Settings For 9.2 m (30 Ft.) Platforms
A-565 mm (22.2 in.)
B-397 mm (15.6 in.)
|
C-268 mm (10.6 in.)
|
D-140 mm (5.5 in.)
|
E-35 mm (1.4 in.)
|
|
|
OUO6075,0003DF7 -19-27APR05-2/2
|
|
