Spreader to Windrow Position

CAUTION: Shut OFF engine, set parking brake and remove key. Before performing service or maintenance on raised spreader, fully insert lock-out pin into place.

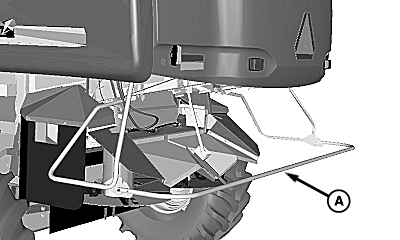

IMPORTANT: Spreader hoop (A) should always be in the "down" position as shown while operating.

Spreader can be rotated upward into windrow position to allow material to discharge into a windrow.

A-Spreader Hoop

OUO6075,0003DF9 -19-11FEB05-1/5

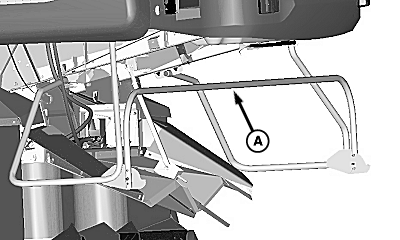

Stand at rear of machine to raise spreader hoop (A) to the locked position as shown to access spreader or when raising spreader to windrow position.

A-Spreader Hoop

OUO6075,0003DF9 -19-11FEB05-2/5

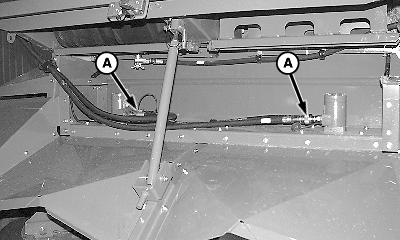

Disconnect hydraulic hoses (A) from spreader and install dust caps.

IMPORTANT: Connect hydraulic hoses together to prevent pump damage.

Connect hydraulic hoses together.

A-Hydraulic Hoses

OUO6075,0003DF9 -19-11FEB05-3/5

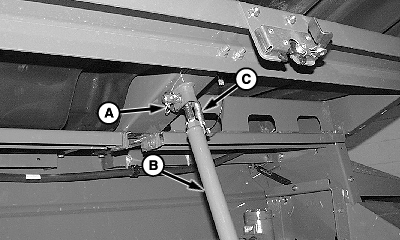

Remove quick-lock pin (A).

Hold onto tube (B) and remove pin (C). Lower tube forward.

A-Quick-Lock Pin
B-Tube
C-Pin

OUO6075,0003DF9 -19-11FEB05-4/5

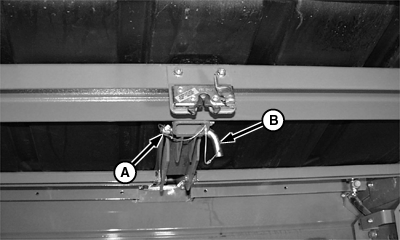

Place pin (B) back into storage position and retain with quick-lock pin (A).

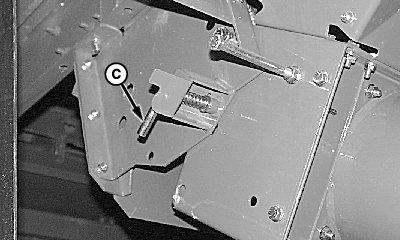

CAUTION: Before performing service or maintenance on raised spreader, fully insert lock-out pin (C) into place.

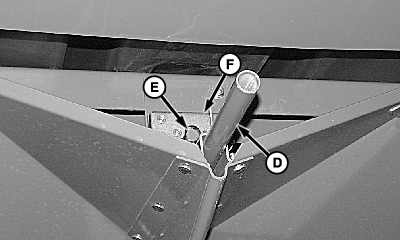

Raise spreader until pin (D) is fully engaged in the latch assembly (E).

A-Quick-Lock
B-Pin
C-Pin
D-Pin
E-Latch Assembly

OUO6075,0003DF9 -19-11FEB05-5/5
