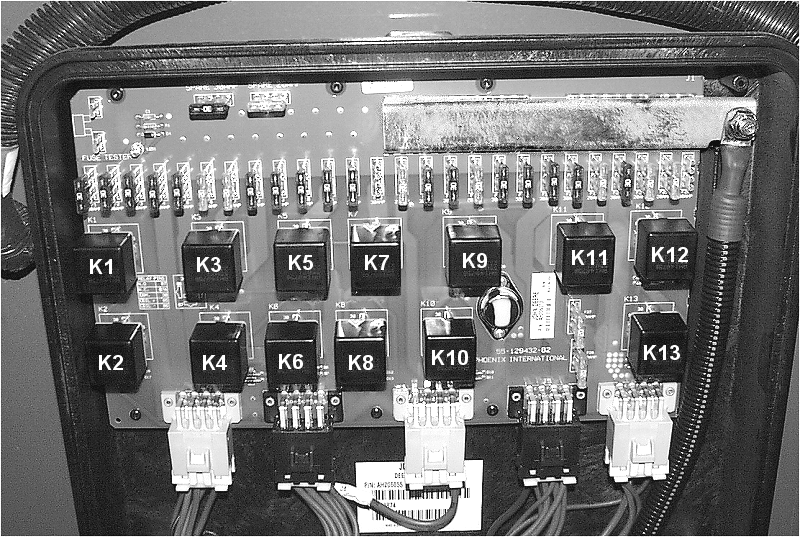

K1-Left Control Unit 1 Power
K2-Control Circuit Power 1
K3-Pressurizer Fan Power
K4-Mirror Adjust Power 1
K5-Fan Speed Adjust Power
|
K6-Recirculation Fan Power
K7-Unused
K8-Convenience Outlet Switched Power
K9-Electronic Power
|
K10-Service Lamp Power
K11-Control Circuit Power 3 and HARVESTSMART Feed Rate (Optional)
|
K12-Engine Control Unit Power
K13-Fuel Pump Switched Power
|
