Communications/CB Radio Mounting

IMPORTANT: Do not install a radio requiring more than 3 amps or the combine electrical system may malfunction.

To install additional radios or a CB radio, see your John Deere dealer.

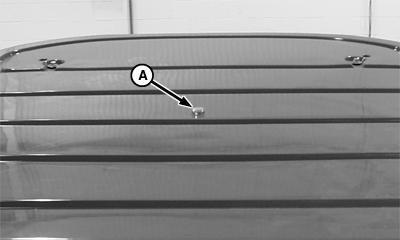

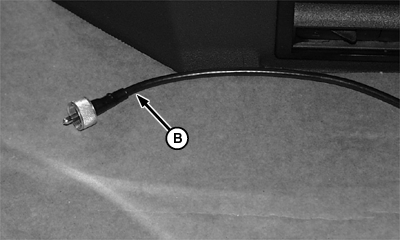

Antenna mount (A) is located in the center of the cab roof. Antenna cable (B) is located on the right-hand side of the cab under the armrest console.

A-Antenna Mount
B-Antenna Cable

OUO6075,0003ECD -19-23MAY05-1/2

A mounting plate is provided to install a radio.

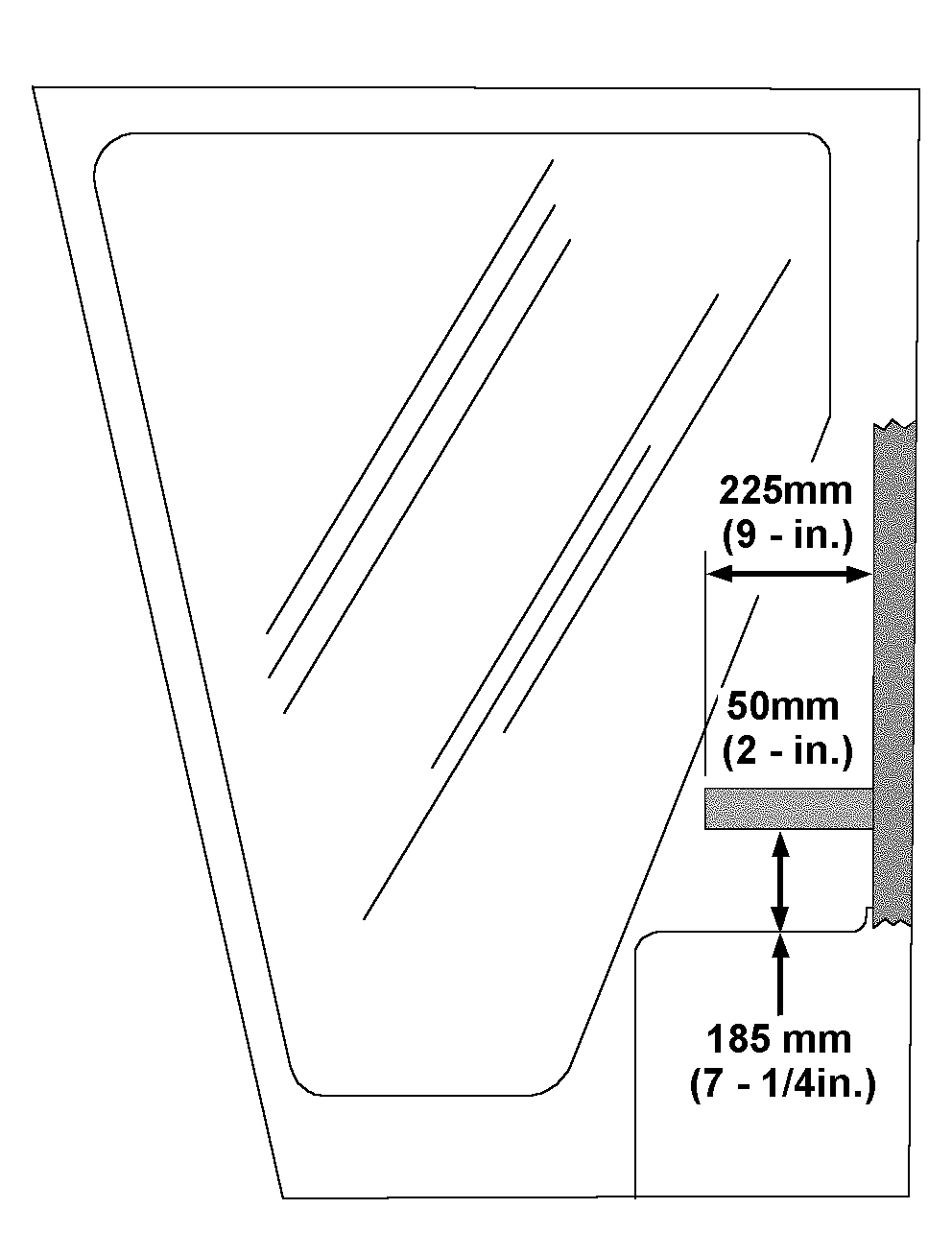

Using bracket from radio template, drill holes as required through foam and plate (shaded area) on right-hand rear inside of cab and use self tapping screws to mount radio.

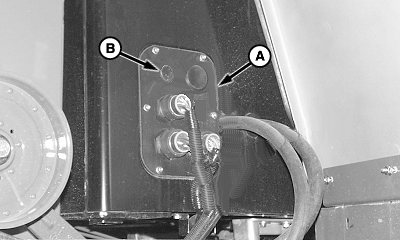

Remove right-hand cab wall plate (A) and remove plug (B). Obtain rubber grommet from your John Deere dealer and cut grommet so antenna cable can be routed through grommet and cab wall plate.

NOTE: Do not leave grommet out or mice can enter cab area through this hole.

A-Cab Wall Plate
B-Plug
