Remove and Install High Intensity Discharge (Xenon) Lights (Optional)

CAUTION: Avoid serious injury or death from electrical shock or lamp explosion. This lamp is powered by 25,000 volts. Do no begin installation of HID-Xenon lights unless lights are turned OFF, engine is shut OFF, parking brake is set, key is removed and appropriate eye protection is worn.

If HID-Xenon lights were previously operated, wait a minimum of five minutes before servicing bulb.

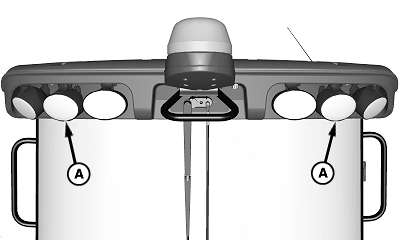

HID-Xenon lights (A) are located in the second and fifth cab light panel holes.

A-HID-Xenon Lights

OUO6075,0003F8D -19-30JUN05-1/3

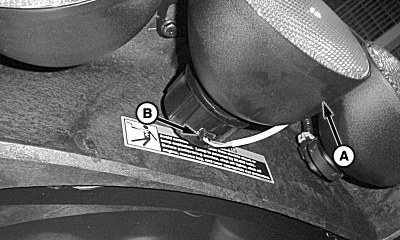

Rotate HID-Xenon light assembly (A) upward and disconnect wiring harness (B).

A-HID-Xenon Light Assembly
B-Wiring Harness

OUO6075,0003F8D -19-30JUN05-2/3

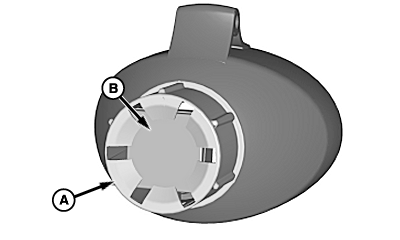

Push in and rotate retainer (A) counterclockwise.

Push in and rotate bulb assembly (B) counterclockwise.

Remove and replace bulb.

Install bulb and retainer in reverse order and connect wiring harness.

A-Retainer
B-Bulb Assembly

OUO6075,0003F8D -19-30JUN05-3/3
