Work Lights

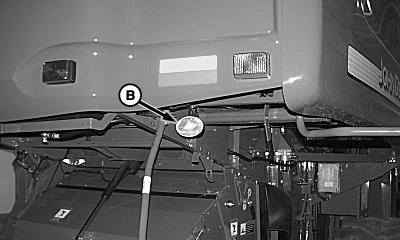

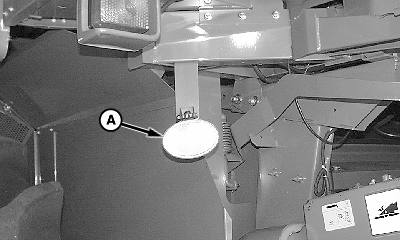

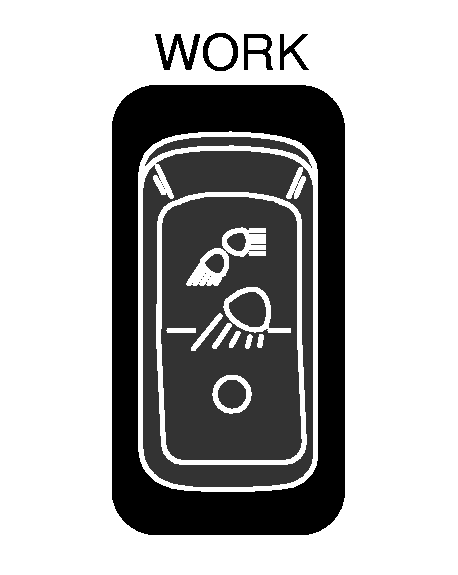

Stubble lights (A) provide the operator with area lighting behind the header for night operation and low light conditions. Rear discharge lights (B) provide the operator with rear area lighting for night operation and low light conditions. Work light switch is a three position switch. When bottom switch is pressed in the lights are turned OFF, when switch is in the middle position the stubble lights are turned ON, and when the top switch is pressed in both the stubble and rear residue lights are turned ON.
|
|
CAUTION:
To avoid motorist confusion, do not operate work lights when transporting on public roadways.
OUO6075,0003FC7 -19-10JUN05-1/1 |
