Road Lights
 CAUTION:
Lights must be turned ON when transporting. Swing cab ladder fully forward to orient warning light towards oncoming motorists.
Road light switch control the warning (flashing) lights (A), four road lights (B), tail lights (C) and turn signals. The road light switch is a two position switch (ON or OFF).

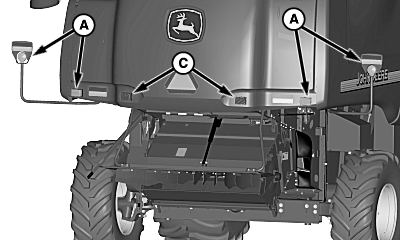

When transporting on a road, flashing lights give warning to other drivers. These lights are located on both sides at the front and rear of the combine.

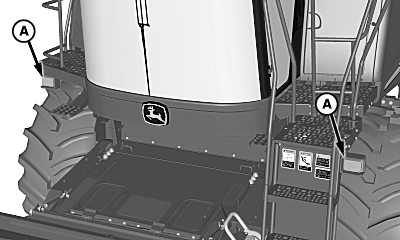

A-Warning Lights

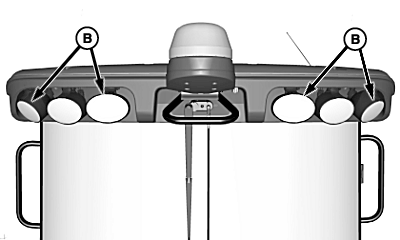

B-Road Light
C-Tail Lights
|
