Feed Accelerator Belt Idler-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

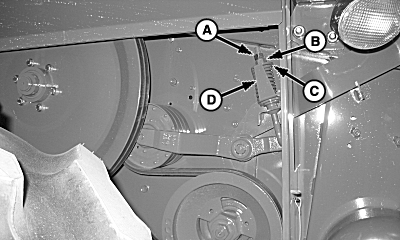

Feed accelerator belt idler is located on right-hand side of combine behind feeder house pivot.

Loosen lock nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

A-Lock Nut
B-Nut
C-Washer
D-Gauge

OUO6075,0000308 -19-06APR06-1/1
