Water Separator Primary Fuel Filter (9.0 L Engine)-Draining

CAUTION: Shut OFF engine, set parking brake and remove key before performing maintenance work.

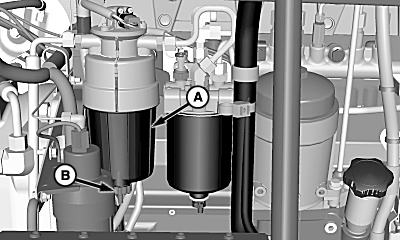

When primary fuel filter (A) senses water in the fuel system an error code is generated on the cornerpost.

If service code ECU/A00 97.16 appears, drain primary fuel filter using drain (B) and reset error code.

A-Primary Fuel Filter
B-Drain

OUO6075,0000371 -19-05APR06-1/1
