Transporting Combine on a Trailer
CAUTION:
Avoid collisions with other roadway users. Before transporting on a public roadway check and follow local regulations regarding the use of lights, flags, over-width signs, pilot vehicles and other requirements for wide loads.
1.
Empty grain tank and swing unloading auger to storage position.
2.

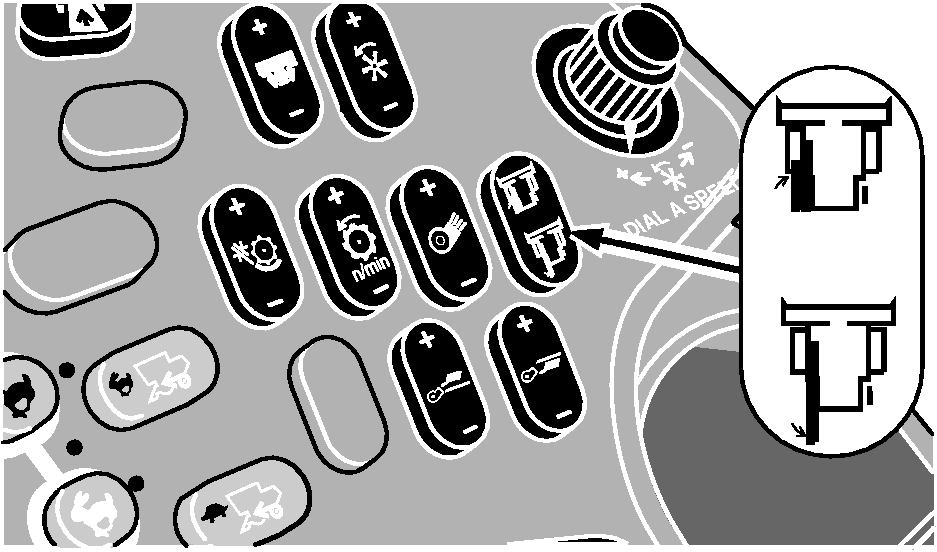

If equipped with power folding auger use switch to fold unloading auger rearward to transport position.
3.
Remove header and outside dual wheels (if equipped).
|
|
|
|
OUO6075,0000373 -19-29JAN07-1/17
|
|
4.
Standard Grain Tank:
a.

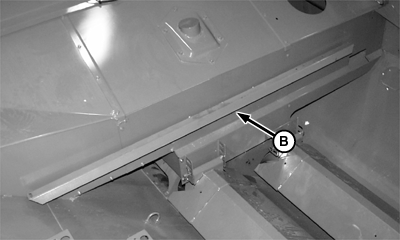

If equipped with grain tank extensions, remove quick-lock pin (A) from grain tank extensions (B).
b.
Fold extension to reduce overall height.
A-Quick-Lock Pins
B-Grain Tank Extensions
|
|
|
|
OUO6075,0000373 -19-29JAN07-2/17
|
|

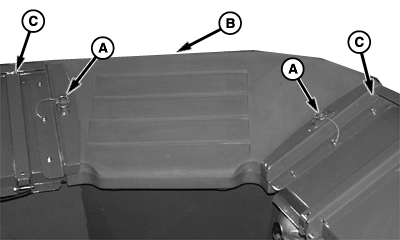

Standard Grain Tank:
a.
If equipped with grain tank extensions, remove quick-lock pins (A) from grain tank corner extensions (B).
b.
Fold extensions (C) to reduce overall height.
A-Quick-Lock Pins
B-Grain Tank Corner Extensions
C-Extensions
|
|
|
|
OUO6075,0000373 -19-29JAN07-3/17
|
|
High Unload Rate Grain Tank:
a.
If equipped with grain tank extensions, remove quick-lock pin (A) from grain tank extensions (B).
A-Quick-Lock Pins
B-Grain Tank Corner Extensions
|
Front Grain Tank Extension Shown
|
|
|
OUO6075,0000373 -19-29JAN07-4/17
|
|
NOTE:

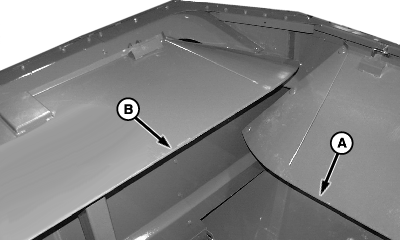

It is important to fold front and rear grain tank extensions first, then fold left-hand and right-hand grain tank extensions last to reduce height.
b.
Fold front and rear grain tank extensions, then fold left-hand and right hand grain tank extensions (if equipped).
A-Front and Rear Grain Tank Extensions
B-Left-Hand and Right-Hand Grain Tank Extensions
|
|
|
|
OUO6075,0000373 -19-29JAN07-5/17
|
|
5.
Remove quick-lock pin (A) and grain sample trough.
6.

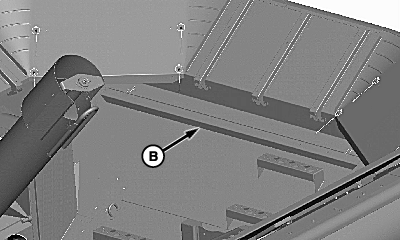

Place grain sample trough in storage position (B).

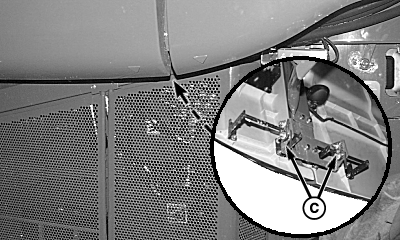

7.

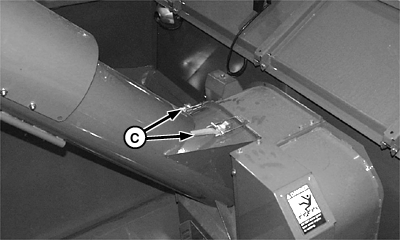

Release clamps (C) and lower auger.
8.
Drive combine on trailer and put multifunction control handle in neutral.
9.
Shut OFF engine, set parking brake and remove key.
10.
Fold radio antenna down.
11.
Swing cab ladder to the full forward position.
A-Quick-Lock Pin
B-Grain Sample Trough (Storage Position)
C-Clamps
|
Standard Grain Tank Sample Trough Storage Position
High Unload Rate Sample Trough Storage Position
|
|
|
OUO6075,0000373 -19-29JAN07-6/17
|
|

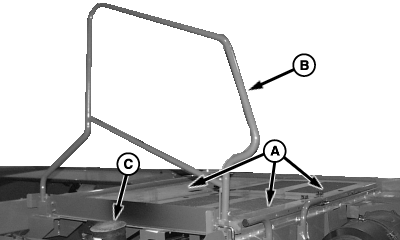

12.
Lower and latch engine access doors (A) and lower handrail (B).
13.
Tape muffler cap (C) closed to prevent damage to turbocharger.
A-Engine Access Doors
B-Handrail
C-Muffler Cap
|
|
|
|
OUO6075,0000373 -19-29JAN07-7/17
|
|
CAUTION:
Possible injury or death to you or others can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location (A) when installing unloading auger retaining cap screw (B). Do not attempt to access location from engine platform.

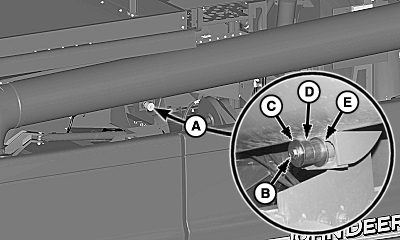

14.
Standard Grain Tank:
a.
Retrieve cap screw (B), washer (C), spacer (D), and washer (E) from tool box.
b.
Install hardware as shown to retain unloading auger.
A-Location
B-Cap Screw
C-Washer
D-Spacer
E-Washer
|
|
|
|
OUO6075,0000373 -19-29JAN07-8/17
|
|
CAUTION:

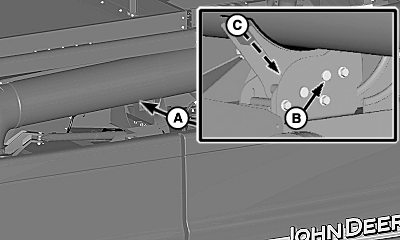

Possible injury or death to you or others can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location (A) when installing unloading auger retaining pin (B). Do not attempt to access location from engine platform.
High Unload Rate Grain Tank (Optional):
a.
Retrieve pin (B) and spring pin (C) from combine box.
b.
Install hardware as shown to retain unloading auger.
A-Location
B-Pin
C-Spring Pin
|
|
|
|
OUO6075,0000373 -19-29JAN07-9/17
|
|
15.
Remove hardware (A) and remove cable (B) from storage position.
A-Hardware
B-Cable
|
|
|
|
OUO6075,0000373 -19-29JAN07-10/17
|
|

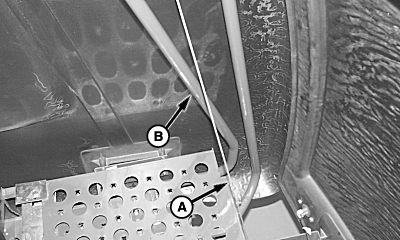

16.
Verify cable (A) is installed on inside of handrail (B).
A-Cable
B-Handrail
|
|
|
|
OUO6075,0000373 -19-29JAN07-11/17
|
|

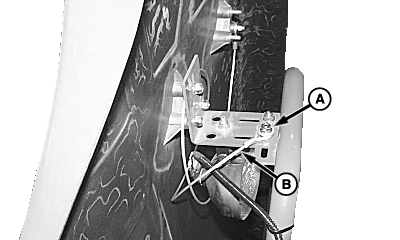

17.

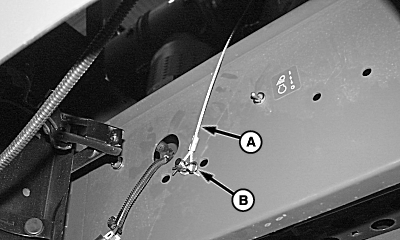

Install cable (A) and retain with spring pin (B).
A-Cable
B-Spring Pin
|
|
|
|
OUO6075,0000373 -19-29JAN07-12/17
|
|
18.

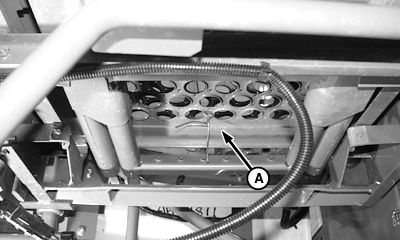

Wire down ladder extension and platform (A).
A-Ladder Extension and Platform
|
|
|
|
OUO6075,0000373 -19-29JAN07-13/17
|
|

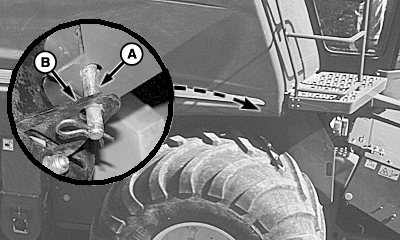

19.

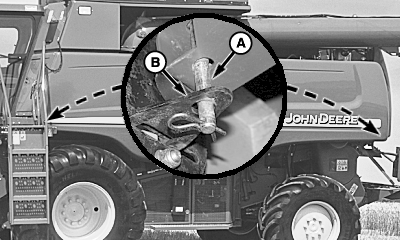

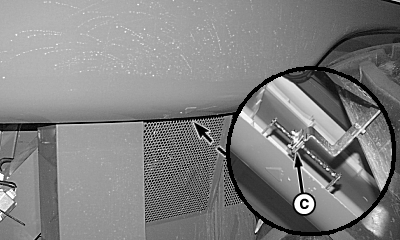

Make sure that pin (A) is installed through locking plate (B) and retained with spring pin at front corner of right-hand gull wing door and door latch (C) is fully engaged.
20.
Wire down door at latch (C).
A-Pin
B-Locking Plate
C-Door Latch
|
|
|
|
OUO6075,0000373 -19-29JAN07-14/17
|
|
21.
Make sure pins (A) are installed through locking plates (B) and retained with spring pins at front and rear corners of left-hand gull wing doors and door latch (C) is fully engaged.
22.
Wire down door at latches (C).
A-Pins
B-Locking Plate
C-Door Latches
|
|
|
|
OUO6075,0000373 -19-29JAN07-15/17
|
|

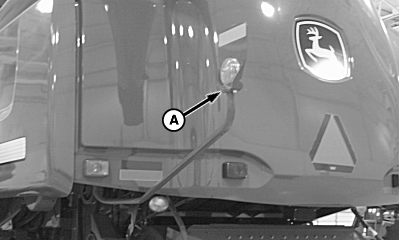

23.
Swing left-hand and right-hand warning light (A) rearward.
A-Warning Light
|
Left-Hand Warning Light Shown
|
|
|
OUO6075,0000373 -19-29JAN07-16/17
|
|

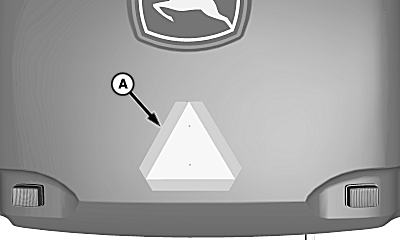

24.
Cover up slow moving vehicle emblem (A).
IMPORTANT:
Fasten combine to trailer with chains.
25.
Fasten combine to trailer with chains (see Combine Tie Down Location Decal located on the cab ladder for tie down information).
A-Slow Moving Vehicle Emblem
|
|
|
|
OUO6075,0000373 -19-29JAN07-17/17
|
|
