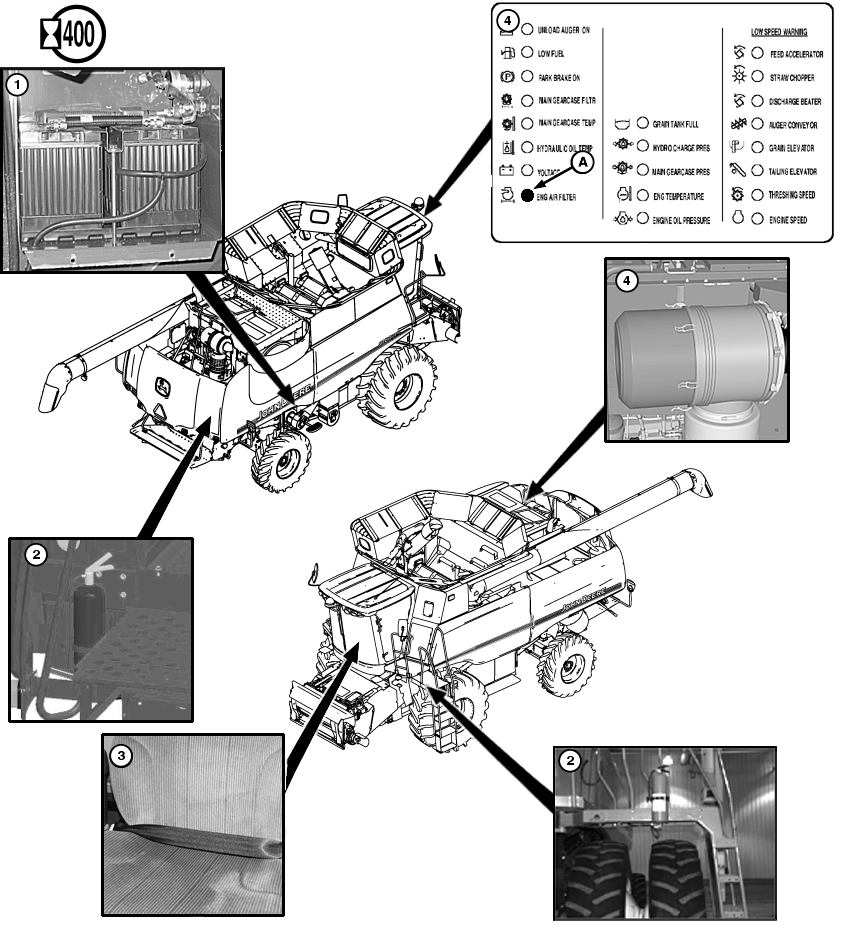

Every 400 Hours

H85714


A-Warning Light



1. Batteries - Clean off top of batteries and check level in each cell. Fill to bottom of filler neck with distilled 		water if needed. Clean battery posts and cables. Tighten connections, if needed.

OUO6075,000038B -19-18APR06-1/2

2. Fire Extinguishers - Inspect fire extinguishers (front and rear) by following the maintenance instructions on the fire extinguisher label. Recharge or replace as necessary.

IMPORTANT: Inspect seat belt and mounting hardware on your machine at least once a year. If seat belt system, including the mounting hardware, buckle, belt or retractor, shows any sign of damage or unusual wear, discoloration, or abrasion the entire seat belt should be replaced

immediately. For your safety, replace the seat belt system with replacement parts approved for your machine. See your John Deere dealer.

3. Seat Belt - Inspect seat belt for damage.

4. Air Filter Element - When warning light (A) is shown, service primary filter Check precleaner for plugging. Check for leaks and for collapse of aspirator tube. Replace elements if plugged.

OUO6075,000038B -19-18APR06-2/2
