Cleaning Out the Combine

CAUTION: To prevent injury, never clean the combine with the engine running and the separator engaged. Shut OFF engine, set parking brake and remove key.

The following instructions are recommended when cleaning out the combine for certified seed crops or when transporting the combine inter-state.

CAUTION: Block header safely so it will not move. Lower reel safety stops.

Remove header from combine.

Drive combine over end rows or bumps to jar and shake dirt loose. Shut OFF engine, set parking brake and remove key.

Open or remove all doors and drain holes.

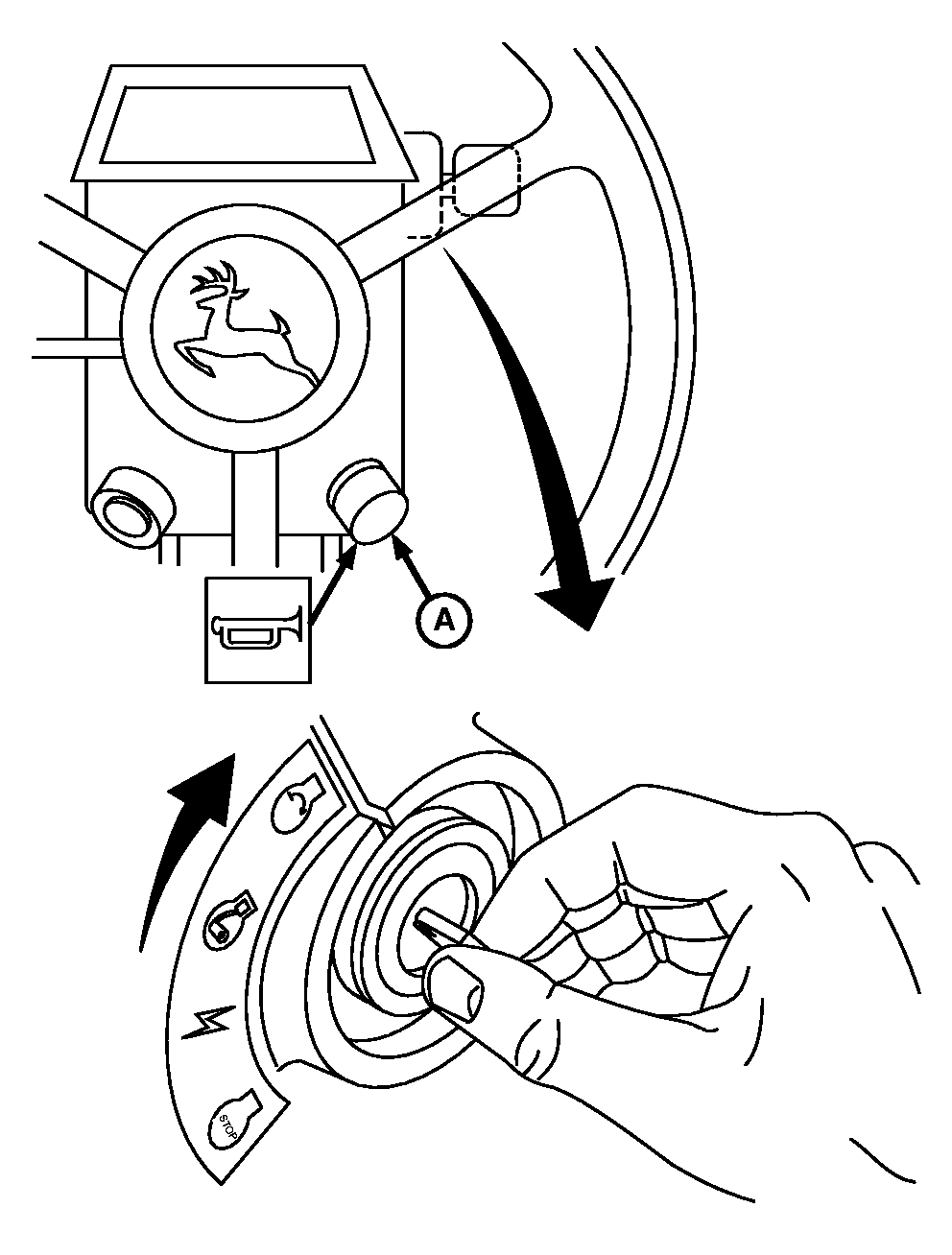

CAUTION: Sound horn (A) to clear everyone from area. Stay clear of combine when discharging chaff.

Start engine and let separator run until chaff stops coming out rear.

Lower engine rpm to low idle and engage separator several times. Running the separator at low idle removes dirt from inside the rotor.

Move throttle to high rpm and run for a few minutes. Repeat cycle until chaff no longer comes out of the rear of the combine.

CAUTION: Keep bystanders clear of combine when discharging chaff.

Drive combine onto blocking so right-hand side is about 150 mm (6 in.) higher, or park on incline so dirt can run out.

A-Horn

OUO6075,0000A86 -19-29JAN07-1/22

CAUTION: Shut OFF engine, set parking brake, remove key, block wheels and lower feeder house safety stop.

When working with compressed air in dusty conditions, you must wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft.) wand (end).

Start at top of combine and work down.

OUO6075,0000A86 -19-29JAN07-2/22

Open cleanout doors (A), (B) and (C).

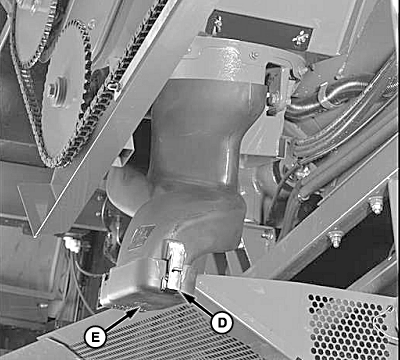

IF EQUIPPED: Release latch (D) and open cleanout door (E).

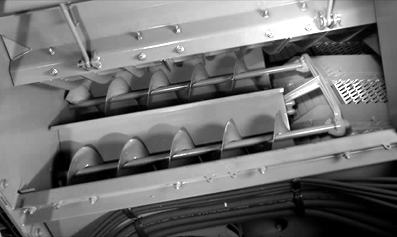

Clean grain from under grain tank cross augers over to the sump.

Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from these doors as you are standing on the ground.

A-Cleanout Door
B-Cleanout Door
C-Cleanout Door
D-Latch
E-Cleanout Door

OUO6075,0000A86 -19-29JAN07-3/22

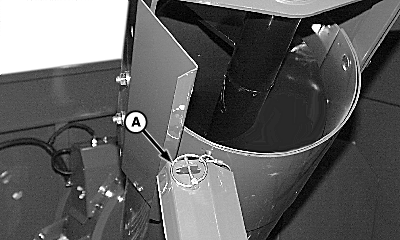

Remove quick-lock pin (A) and lower sample trough.

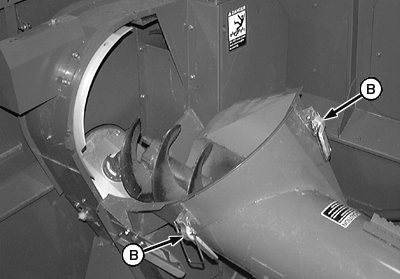

Release clamps (B) and lower auger.

Clean top area and down into clean grain elevator to clean elevator chain. Clean all sides.

A-Quick-Lock Pin
B-Clamps

OUO6075,0000A86 -19-29JAN07-4/22

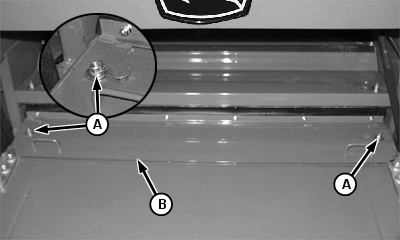

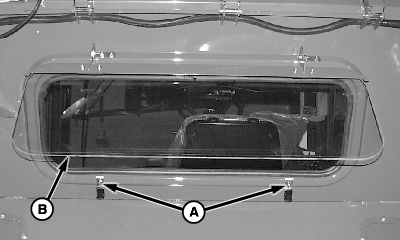

Loosen clamps (A) and swing grain tank window (B) up.

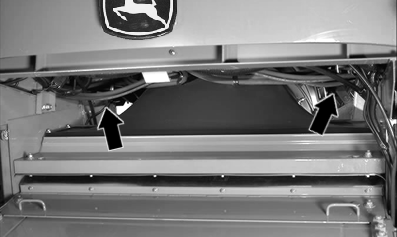

Clean out area behind cab, around primary countershaft and over tine separator.

A-Clamps
B-Grain Tank Window

OUO6075,0000A86 -19-29JAN07-5/22

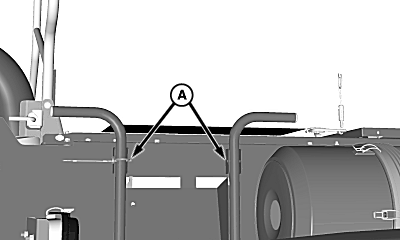

Clean engine compartment area. Ladder can be moved by removing quick-lock pins (A) and lifting bottom of ladder out of slot.

A-Quick-Lock Pins

OUO6075,0000A86 -19-29JAN07-6/22

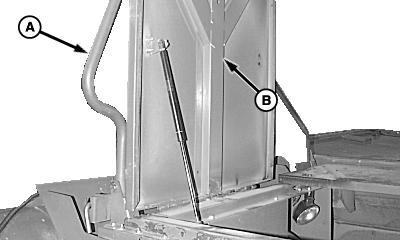

Raise handrail (A) and raise engine access cover (B).

A-Handrail
B-Engine Access Cover

OUO6075,0000A86 -19-29JAN07-7/22

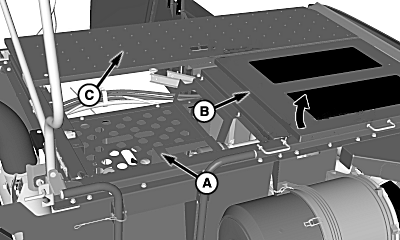

Stand on access step (A) to raise engine access covers (B) and (C).

Clean area around tine separator and both sides of engine.

Clean entire engine compartment area, especially under engine.

Wipe up any oil or grease found on the engine area.

A-Access Step
B-Engine Access Cover
C-Engine Access Cover

OUO6075,0000A86 -19-29JAN07-8/22

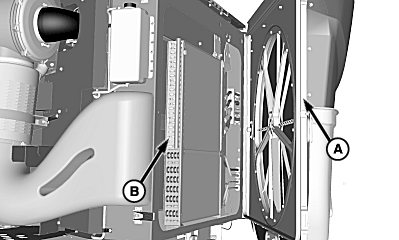

Open rotary screen door (A) and clean the following areas from the inside out: radiator, oil cooler, condenser (B), and rotary screen.

A-Rotary Screen Door
B-Condenser

OUO6075,0000A86 -19-29JAN07-9/22

Open lower tailings elevator door (A) and clean grain elevator door (B).

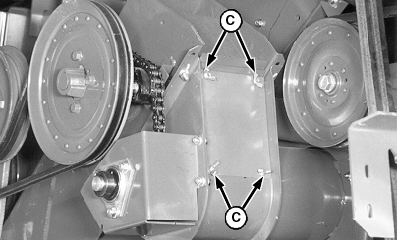

Remove wing nuts (C) and remove door at upper end of tailings elevator.

Clean down sides of elevator and clean out cross auger trough.

A-Tailings Elevator Door
B-Clean Grain Elevator Door
C-Wing Nuts

OUO6075,0000A86 -19-29JAN07-10/22

Clean out chaff between tine separator and sidesheets.

OUO6075,0000A86 -19-29JAN07-11/22

Loosen nuts (A) on each side of feeder house door and push nuts towards center of feeder house.

Pull door forward to remove.

Clean feeder house through top doors (B) and (C).

Lift conveyor chain and let chain snap back several times while cleaning.

A-Nuts
B-Feeder House Door
C-Feeder House Door

OUO6075,0000A86 -19-29JAN07-12/22

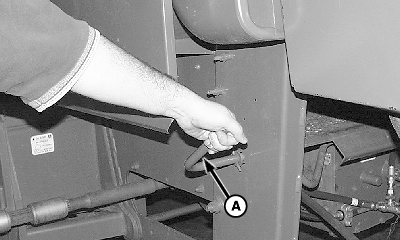

Lower stone trap and feed plate using lever (A). Clean areas out.

A-Lever

OUO6075,0000A86 -19-29JAN07-13/22

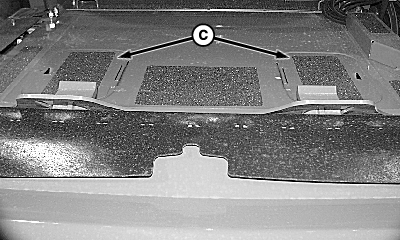

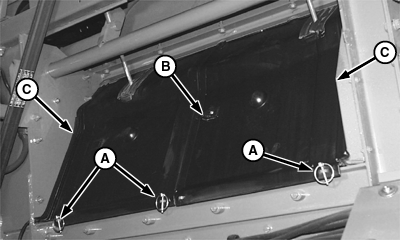

Remove quick-lock pins (A), spring latch (B) and separator covers (C). Use scraper to loosen material, and clean out through sides of combine.

A-Quick-Lock Pins
B-Spring Latch
C-Separator Covers

OUO6075,0000A86 -19-29JAN07-14/22

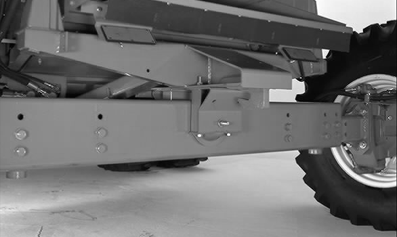

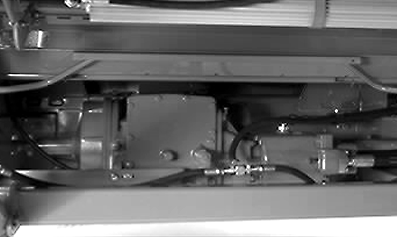

Clean off top of axle and transmission.

OUO6075,0000A86 -19-29JAN07-15/22

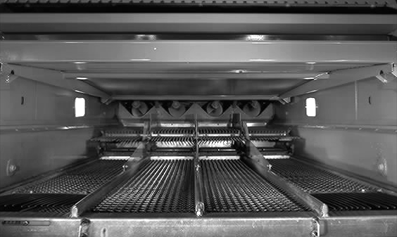

Open sieve and chaffer as far as possible and clean.

OUO6075,0000A86 -19-29JAN07-16/22

Clean rear axle area.

OUO6075,0000A86 -19-29JAN07-17/22

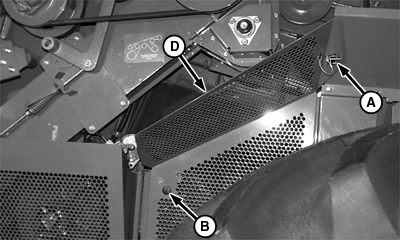

Remove quick lock pins (A) and turn lock (B) counterclockwise to unlock. Remove right-hand rear shield (C) and middle shield (D). Clean out fan area.

A-Quick-Lock Pins
B-Lock
C-Right-Hand Rear Shield
D-Middle Shield

OUO6075,0000A86 -19-29JAN07-18/22

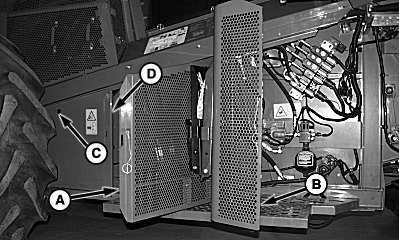

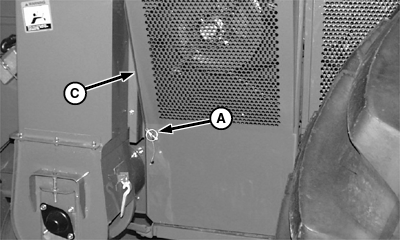

Remove quick-lock pins and open left-hand side shields (A) and (B) and clean area.

Turn lock (C) counterclockwise and remove shield (D).

A-Side Shields
B-Side Shields
C-Lock
D-Shield

OUO6075,0000A86 -19-29JAN07-19/22

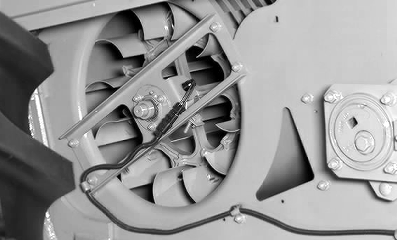

Clean area around fan.

OUO6075,0000A86 -19-29JAN07-20/22

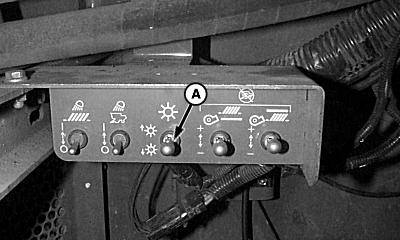

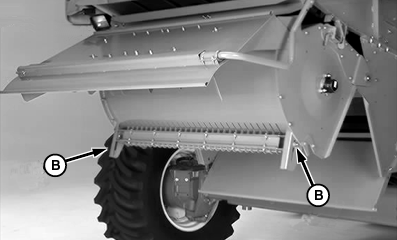

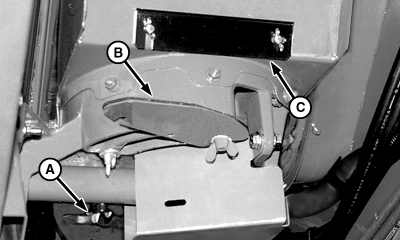

Raise chopper completely with switch (A).

Loosen nuts (B) (both sides) and adjust chopper blades out and clean chopper.

A-Switch
B-Nuts

OUO6075,0000A86 -19-29JAN07-21/22

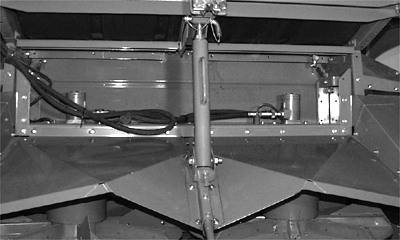

Clean chaff from spreader drive area and spreader hood.

OUO6075,0000A86 -19-29JAN07-22/22
