PowerCast Tailboard Rear Shrouds-Removing and Installing

NOTE: In tough, heavy straw conditions, rear shrouds can be removed to spread more material towards the center of the machine.

Removing Rear Shrouds

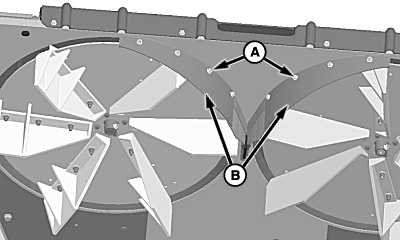

Remove nuts (A) and rear shrouds (B).

Reinstall nuts on existing hardware and retain shroud for future use.

H87339


A-Nuts (8 Used)
B-Rear Shrouds

OUO6075,0000A9B -19-02FEB07-1/2

NOTE: When harvesting corn, front and rear shrouds should always be installed to provide optimal material distribution.

Installing Rear Shrouds

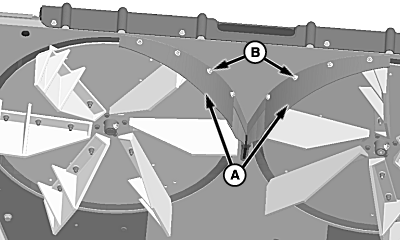

Remove nuts from weld strap and install rear shrouds (A) behind welded strap as shown.

Reinstall nuts (A) to existing hardware.


A-Rear Shrouds
B-Nuts (8 Used)

H87340

OUO6075,0000A9B -19-02FEB07-2/2
