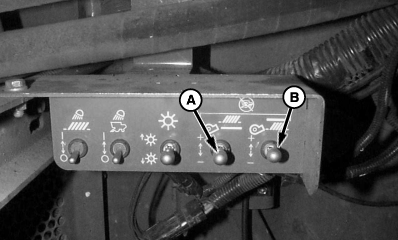

Chaffer/Sieve Adjusting Switch (Optional)Chaffer adjust switch (A) and sieve adjust switch (B) are located on left-hand side of combine above separator shield. Chaffer adjust switch and sieve adjust switch allows the operator to open or close the chaffer and sieve to various positions.
|
|
OUO6075,0002872 -19-18MAR03-1/1 |
