Overhead Warning Display Panel Light Bulb-Replacement

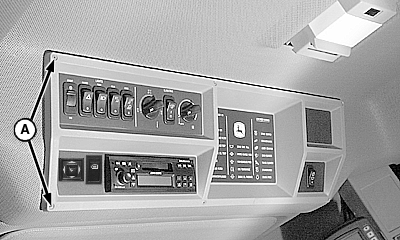

Remove six screws (A) attaching display panel and lower panel.

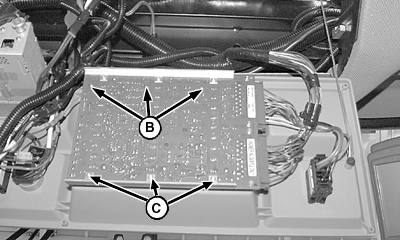

Remove screws (B), (C) and circuit board.

Remove defective bulb by pulling straight out.

Install new bulb (D) in reverse order.

A-Screws
B-Screws
C-Screws
D-Bulb

OUO6075,00029EF -19-31MAR03-1/1
