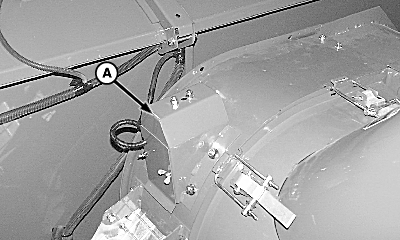

Mass Flow SensorMass flow sensor (A) is located in the top of the clean grain elevator housing in the grain tank. Harvested grain discharged from the clean grain elevator then deflects onto the impact plate. Mass flow sensor converts the force of the grain into an electronic impulse corresponding to the yield-wet unit/area unit.
|
|
OUO6075,0002FF1 -19-20AUG03-1/1 |
