Chopper-Lowering

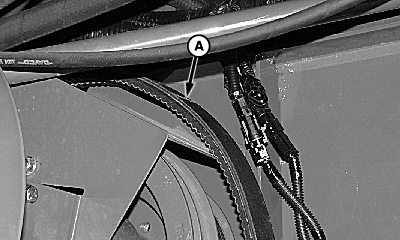

1. Remove drive belt (A) from storage position.


A-Drive Belt

H74377

OUO6075,00030C3 -19-16SEP03-1/4

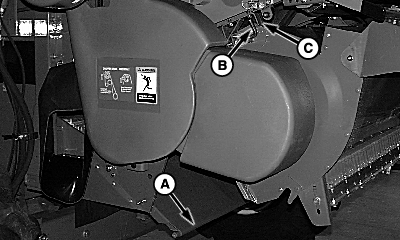

2. Place lower deflector door (A) in the middle position.

3. Release lock-out pins (B) on both sides. Pull pins rearward and rotate up until handle rest on lockout bracket (C).


A-Lower Deflector Door
B-Lock-Out Pins
C-Lockout Bracket

H71801

OUO6075,00030C3 -19-16SEP03-2/4

4. Push switch (A) down to lower chopper.


A-Switch

H69985

OUO6075,00030C3 -19-16SEP03-3/4

5. Place drive belt on desired drive speed sheaves.

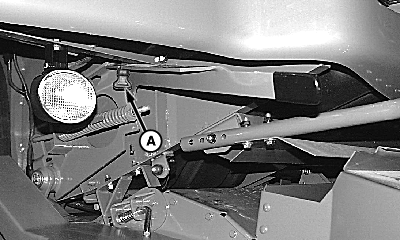

6. Remove rubber strap (A) from slot on arm.

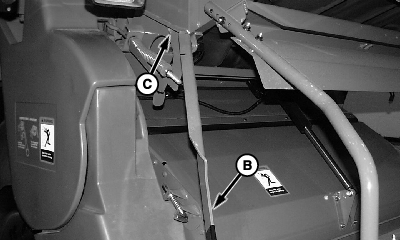

7. Pull arm (B) out and down to put tension on drive belt. Secure arm in slot (C).


A-Rubber Strap
B-Arm
C-Slot

H78534
H73721

OUO6075,00030C3 -19-16SEP03-4/4
