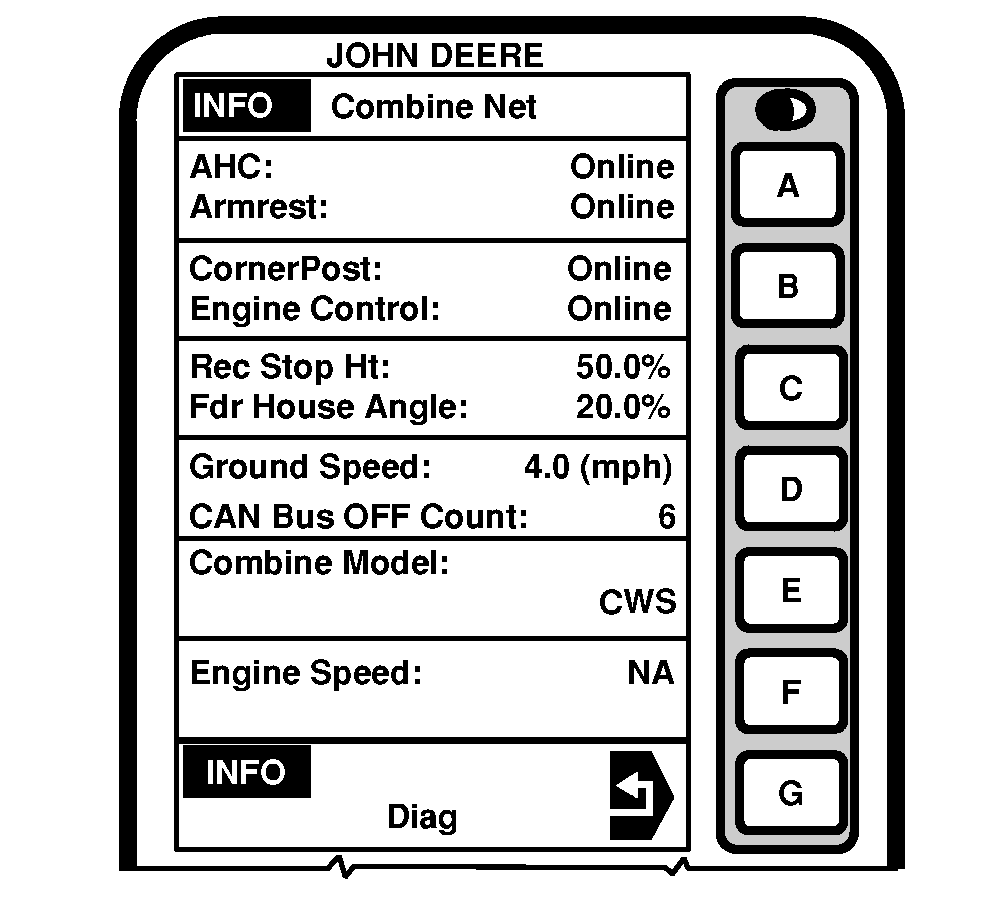

INFO - Combine Network

Press letter button next to "Combine Network" C on INFO - Diagnostics screen and INFO - Combine Net screen will appear.

Automatic Header Control (AHC) Cell

Indicates if AHC is online or offline.

Armrest Cell

Indicates if armrest is online or offline.

Corner Post Cell

Indicates if corner post is online or offline.

Engine Controller Cell

Indicates if engine controller is online or offline.

Rec Stop Ht Cell

This cell shows percentage of feeder house angle that Rec Stop Ht is set at.

Fdr House Angle Cell

This cell shows percentage of feeder house angle the feeder house is currently set at.

Ground Speed Cell

Displays current ground speed of the combine.

CAN Bus OFF Count Cell

Factory use only.

Combine Model Cell

This cell shows the combine model as indicated by the CAN Bus system.

Engine Speed Cell

Displays current engine speed.

H78455
