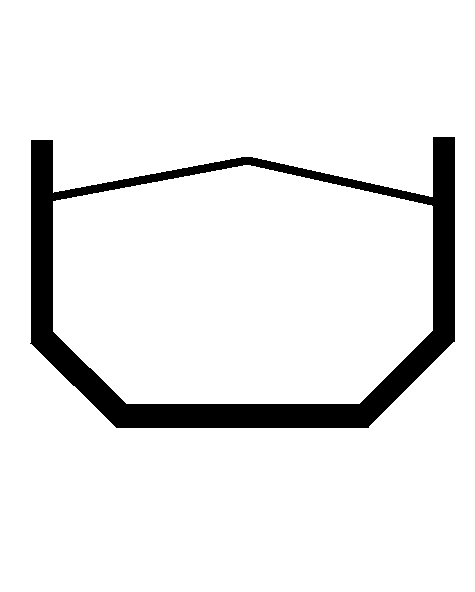

Grain Tank Full Indicator

When green indicator light comes ON a buzzer will sound with thee short pulses. Indicator light will stay ON until grain tank is emptied. Sensor must be tripped for two seconds for indicator light to come ON and buzzer to sound.

Buzzer will not sound if header switch is turned OFF, but indicator light will remain ON until grain tank is emptied.

If light remains ON after grain tank is emptied, check switch paddle in grain tank for free movement and clean if necessary. If light stays ON, see your John Deere dealer.
