CLIMATRAK Automatic Temperature Control

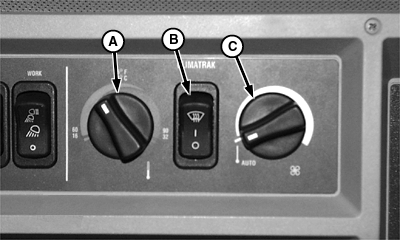

CLIMATRAK system consists of a temperature control (A), mode selector (B), fan control speed (C), and cab temperature sensor (D).

Mode selector is a three position switch. With mode selector in OFF position (bottom switch pressed in), all power to the system is OFF. With mode selector in ON position (middle position), power is supplied for normal functions. With mode selector in "DEFOG" position (top switch press in), power is supplied to the compressor regardless of the set temperature. This position helps remove moisture from the air even in heat mode.

Turn temperature control clockwise to increase temperature. Turn temperature control counterclockwise to decrease temperature.

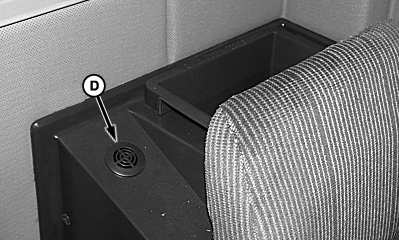

NOTE: Cab temperature sensor (D) is located behind instructional seat. Do not cover this sensor or system may not operate correctly in AUTO mode.

Recirculation fan controls the amount of air coming out the louvers. Fan speed control has a detent position for an automatic fan speed setting. In this position, fan speed is determined by the difference between the selected temperature and the actual cab temperature. As the temperature approaches the set point, the fan speed will decrease.

A-Temperature Control
B-Mode Selector
C-Fan Speed Control
D-Cab Temperature Sensor

OUO6075,0003601 -19-06MAY04-1/1
