Windshield Wiper and Windshield Washer (Optional)

NOTE: Key switch must be ON or combine must be running for windshield wiper and windshield washer to operate.

Windshield wiper system allows the operate to clear the windshield. Windshield washer system allows the operator to control a flow of water to aid in clearing the windshield.

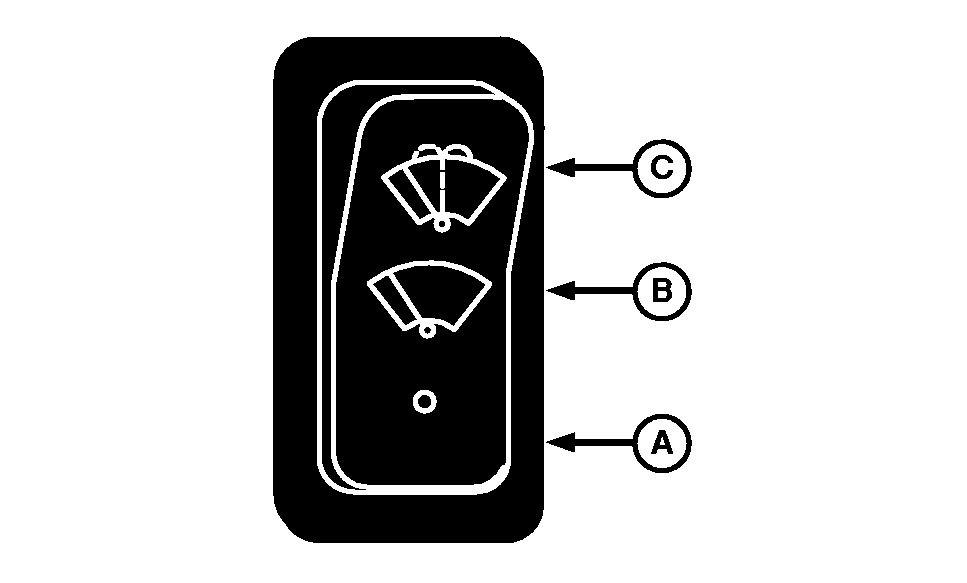

Windshield wiper and washer switch is a three position switch. With windshield wiper switch in OFF position (A) (bottom switch pressed in), all power to the system is OFF. With windshield wiper switch in ON position (B) (middle position), the wiper will begin to move back and forth across the windshield. When switch is turned OFF, the wiper will stop on either side of the windshield depending when the switch was turned OFF.

When windshield wiper switch (optional) (C) is in washer position (top switch press in) the windshield washer pump will spray fluid onto the windshield. This will continue until the switch is released.

A-Windshield Wiper Switch, OFF
B-Windshield Wiper Switch, ON
C-Windshield Washer Switch (Optional)

OUO6075,0003604 -19-06MAY04-1/1
