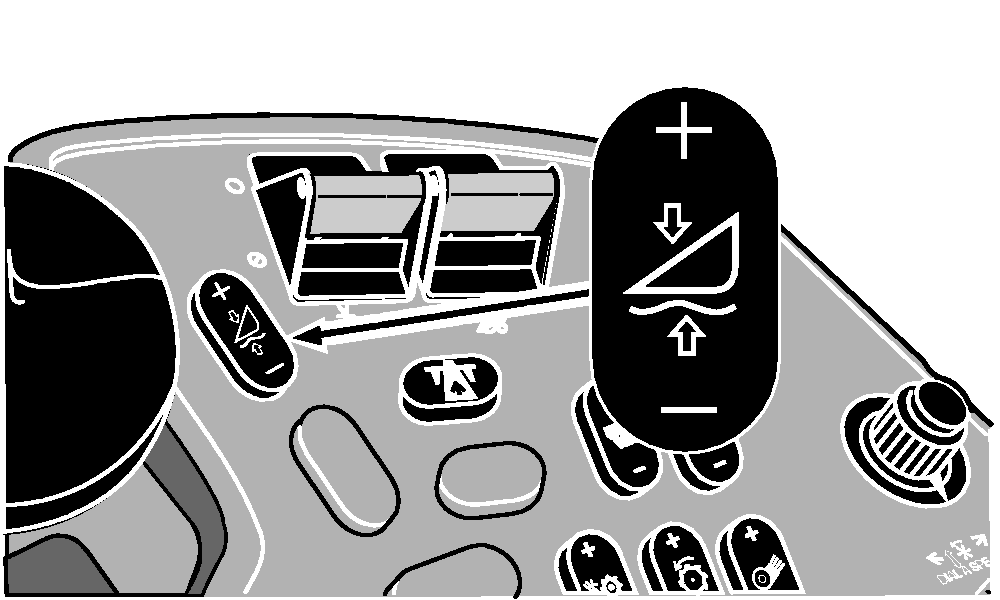

HYDRAFLEX™ Control Switch (Black)

NOTE: HYDRAFLEX switch will only work on HYDRAFLEX equipped platforms.

HYDRAFLEX switch controls the amount of pressure in the platform cutterbar. To increase cutterbar pressure, press and hold (+) symbol or press and hold (-) symbol to decrease cutterbar pressure.

HYDRAFLEX is a trademark of Deere & Company

OUO6075,0003612 -19-23APR04-1/1
