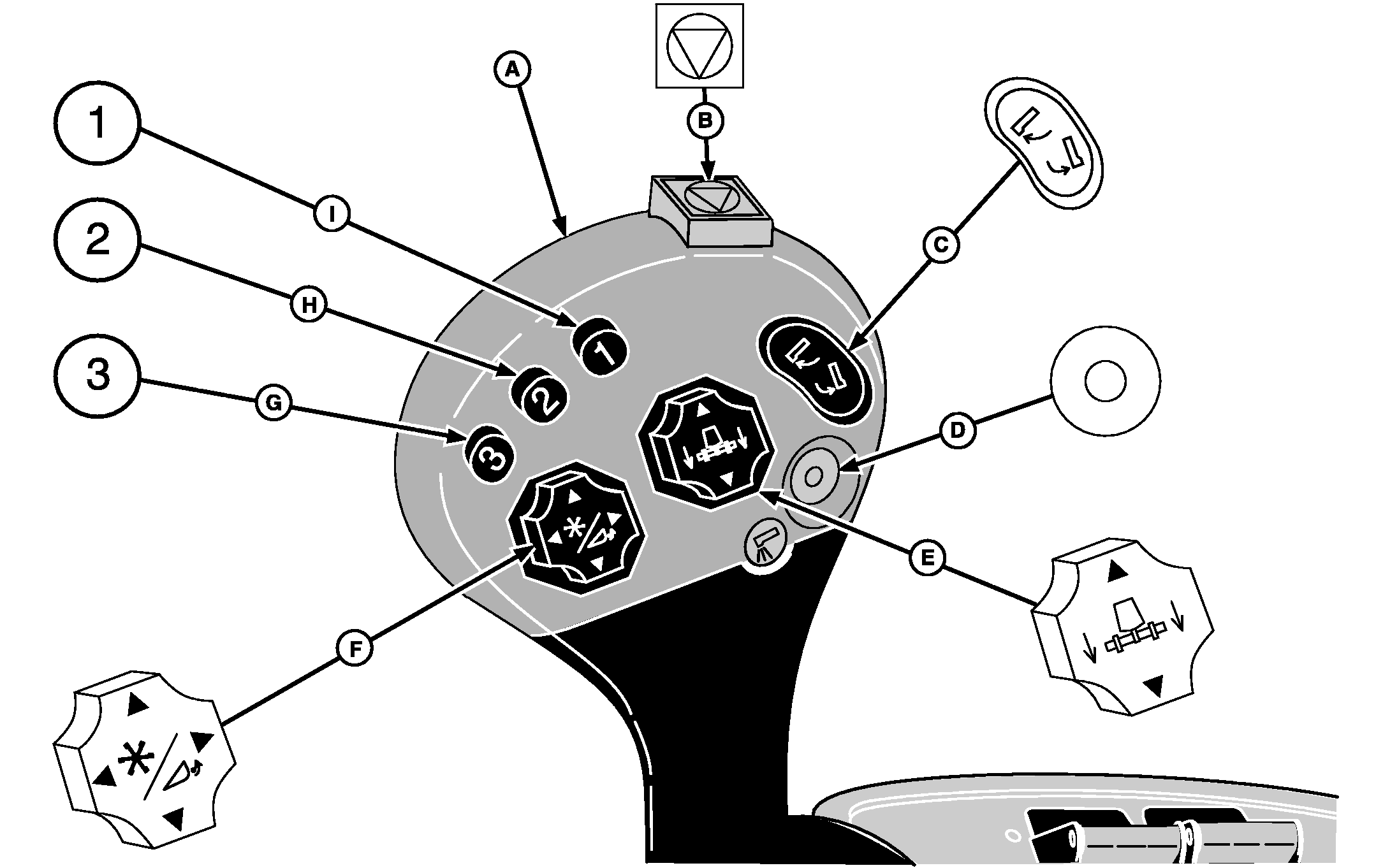

A-Forward and Reverse Control Handle
B-Quick Stop Switch
C-Unloading Auger Swing In and Out Switch
D-Unloading Auger Drive Engage/Disengage Switch and Light Indicator
|
E-Header Raise/Lower Switch and CONTOUR MASTER Switch (Optional)
F-Reel Raise/Lower Switch and Reel Fore and Aft Switch (Optional)
|
F-Front End Speed if equipped w/Corn Head or Row-Crop Head
F-Adjust Corn Head Adjustable Deck Plates (Optional)
|
G-Activation Button 3
H-Activation Button 2
I-Activation Button 1
|
