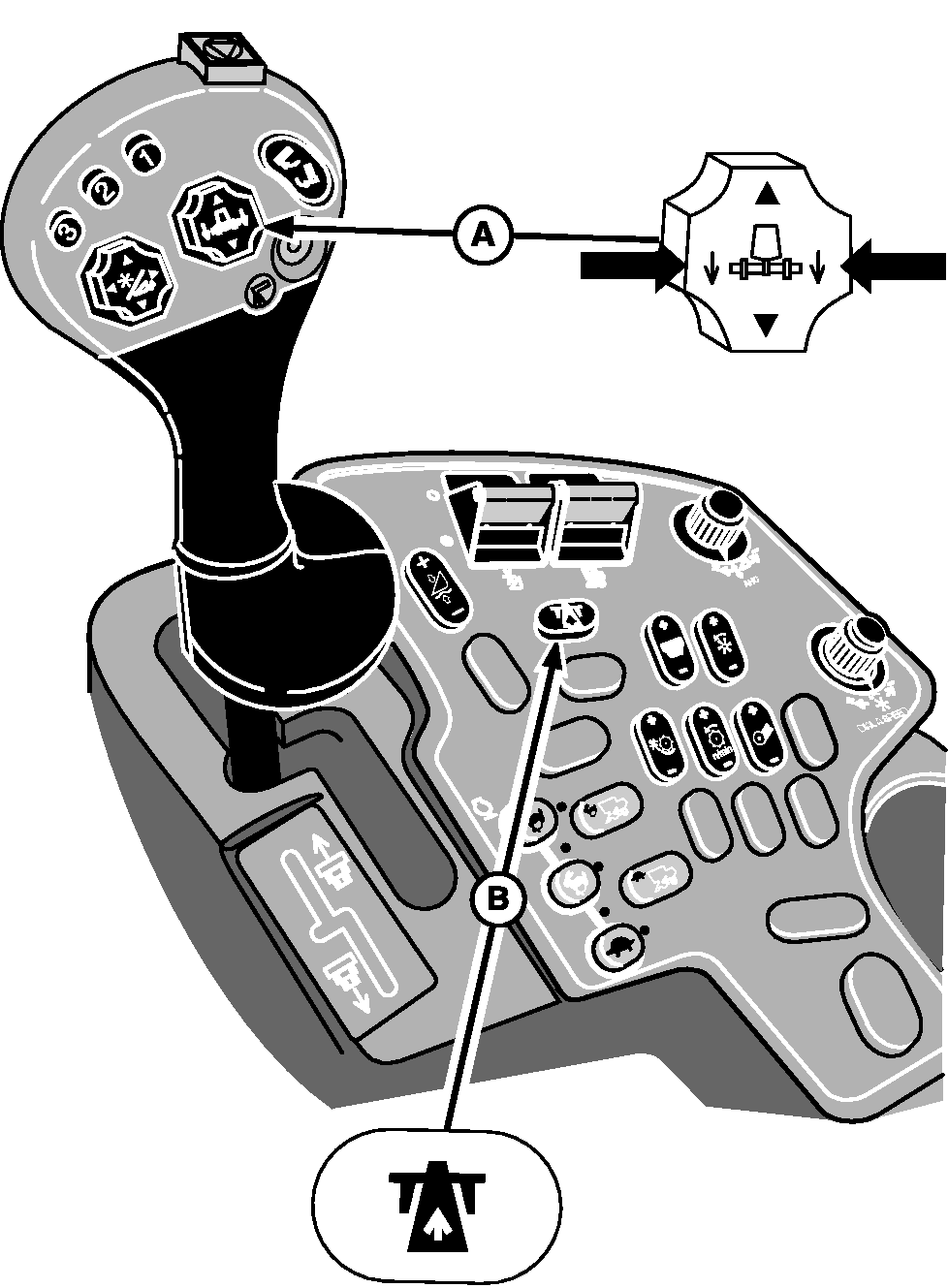

CONTOUR MASTER Manual Tilt Switch (Black)To manually operate CONTOUR MASTER manual tilt switch (A), road transport disconnect switch (B) must be in field position. Press and hold right side of switch to tilt feeder house to the right or press and hold left side of switch to tilt feeder house to the left.
|
|
OUO6075,000361A -19-27APR06-1/1 |
