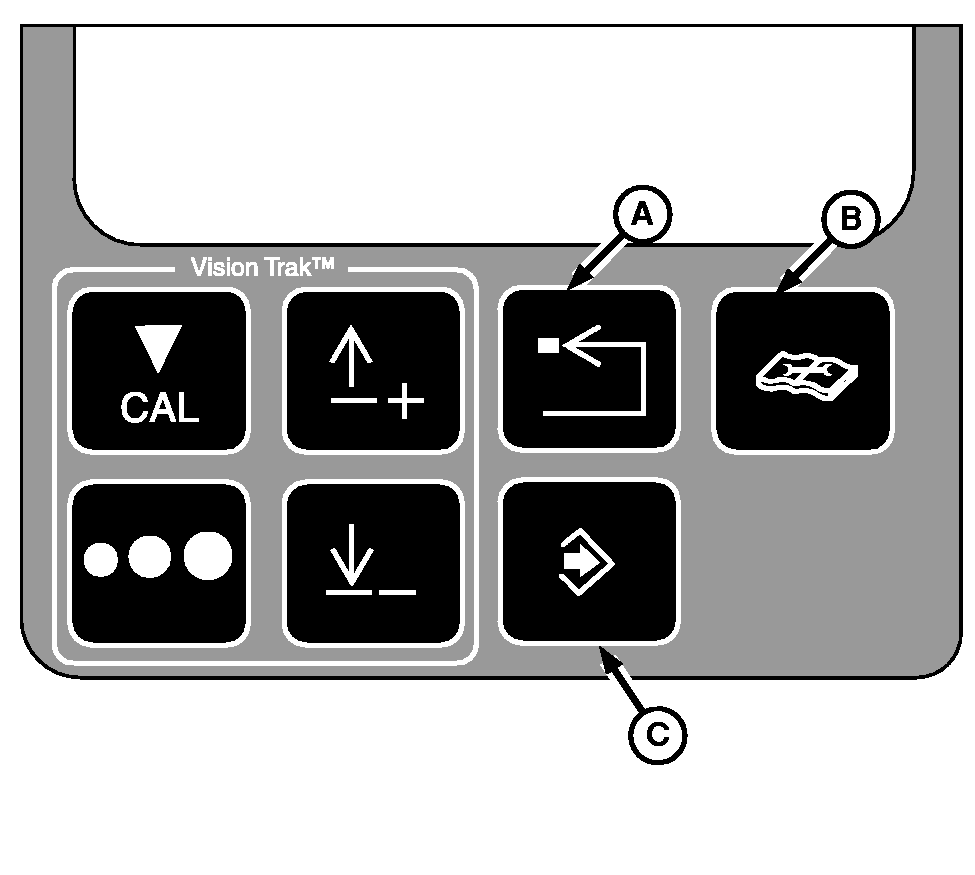

VISIONTRAK Monitor Diagnostic Buttons


A-Back Arrow Button
B-Diagnostic Button
C-Enter Button

H70443

OUO6075,0003626 -19-06MAY04-1/4

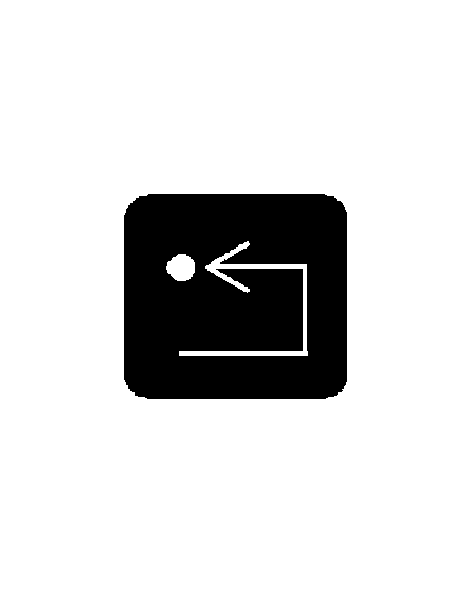

Back Arrow Button

Press back arrow button allows the operator to back out to the previous mode.

H80829

OUO6075,0003626 -19-06MAY04-2/4

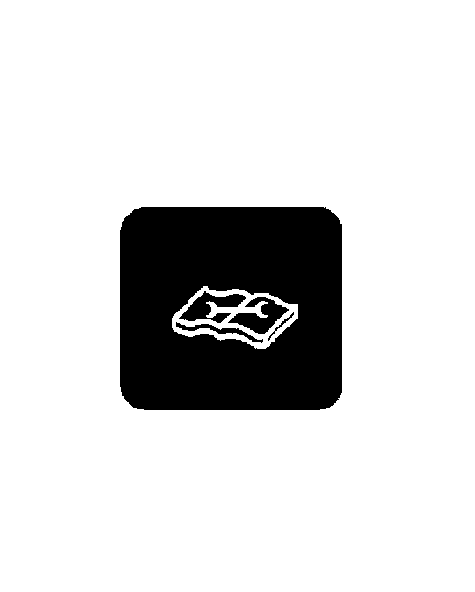

Diagnostics Button

Press diagnostic button will put the monitor into the diagnostic mode.

H80830

OUO6075,0003626 -19-06MAY04-3/4

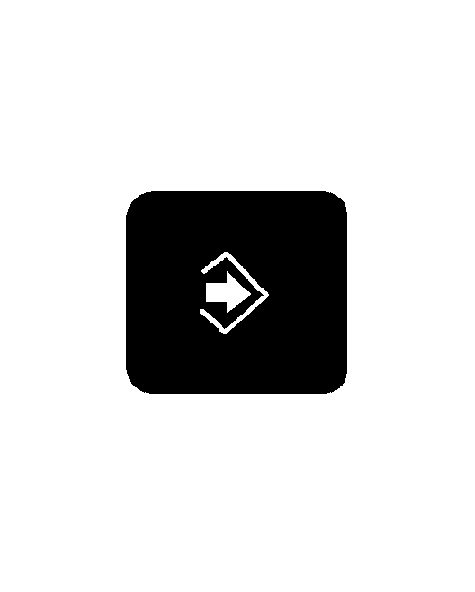

Enter Button

Press enter button allows entry of data into the memory.

H80831

OUO6075,0003626 -19-06MAY04-4/4
