VISIONTRAK Tailings Sensor Display

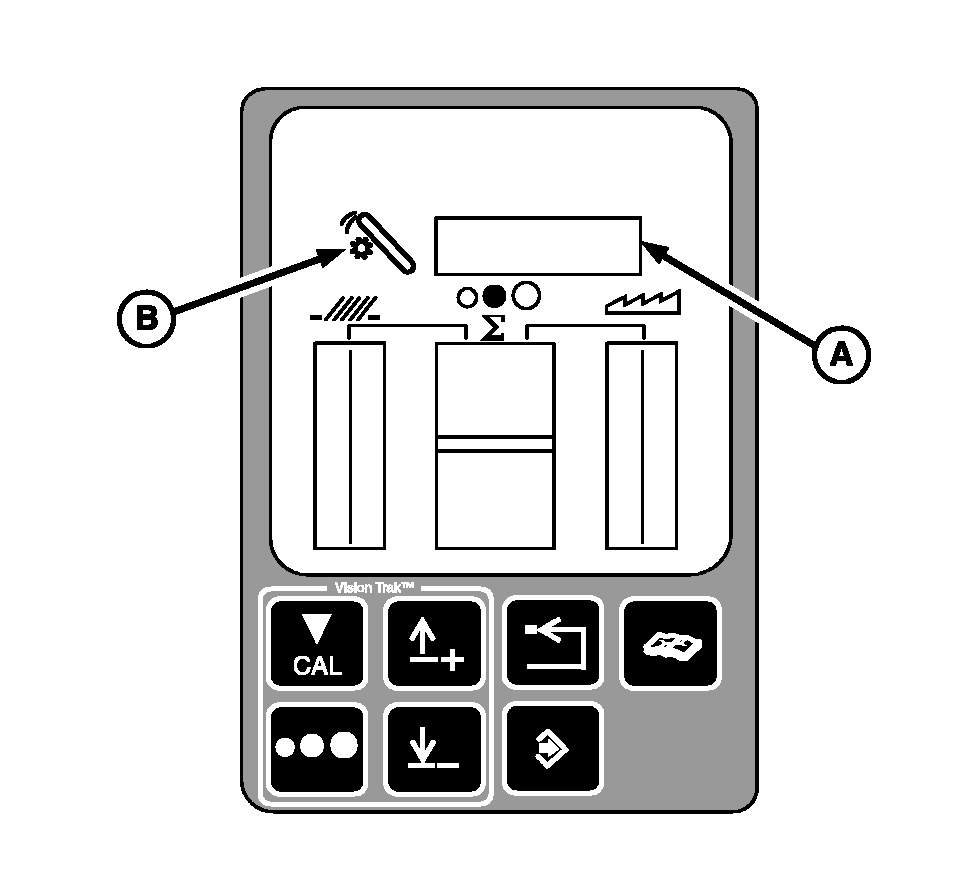

Tailings volume is displayed as a percentage of total full in the horizontal bar graph (A) located in the upper portion of the display next to the tailings icon (B).

Tailing volume is defined as the total amount of material (grain and material other than grain) moving through the tailings elevator.

    Tailings sensor display will operate:

  • Engine is running

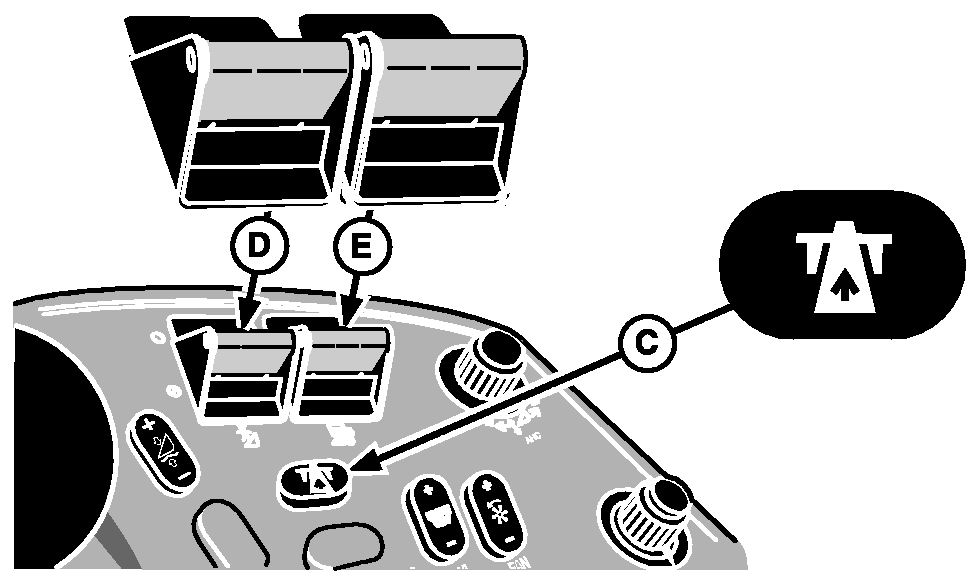

  • Road transport disconnect switch (C) is in field position
  • Header switch (D) and separator switch (E) must be engaged


A-Horizontal Bar Graph
B-Tailings Icon
C-Road Transport Disconnect Switch
D-Header Switch
E-Separator Switch
