Gear Shift Lever

IMPORTANT: Stop combine and move multifunction control handle to neutral before shifting from one gear to another.

When shifting with gear shift lever (A), the shift is a straight line pattern with detents for 1, 2 and 3. Less resistance is felt for neutral between 1st and 2nd gears.

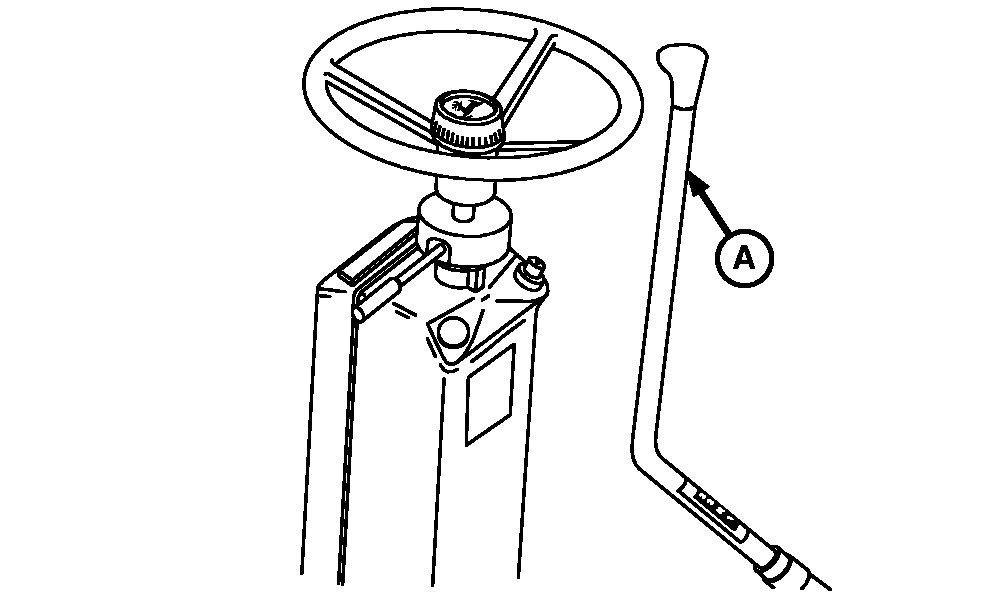

A-Gear Shift Lever

OUO6075,000363D -19-27APR04-1/1
